LED Light Pipes

Rigid or flexible light pipes for the printed circuit board to guide the light to the right place

With a light pipe, light is transmitted from a light source, an LED, in a cost-effective, space-saving and low-loss manner. The LED is mounted on a printed circuit board whose light is transported over a certain distance with the light guide to its point of exit. Flexible light pipes with flexible body or rigid light pipes with a fixed body are used.

Rigid light pipes are available in a wide range of designs, heights and lens shapes up to bodies with several lenses or light pipes. Flexible light pipes offer the electrical developer almost every imaginable freedom of installation. Since the light is conducted via a flexible cable, the length of the cable can be chosen at will and the LED can be placed almost anywhere on the PCB. Furthermore, obstacles on the PCB play a secondary role for flexible light pipes.

With the ELPAC brand, we offer a wide range of plastic components for PCB construction and electronics housing construction. With high delivery reliability and quality products, we focus on long-term partnerships and accompany you throughout the entire lifespan of your application. Take a look at our B2B shop for components and find out about prices, availability and place your order.


22 results found

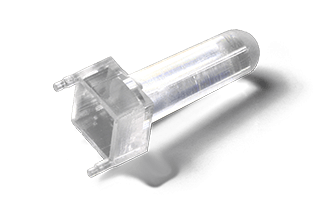

Rigid light guide EVL1
Rigid light pipe EVL1
Light pipe for PCB plug-in mounting. Transparent lens Ø3 mm in dome or in flat face design. Light pipe lengths from 2.4 to 13.8 mm

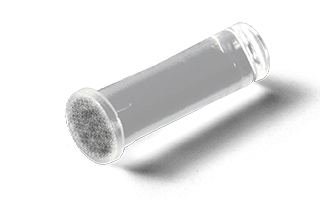

Rigid light guide EPL7
Rigid light pipe EPL7
Light pipe for plug-in mounting from the front of the panel. Diffuse lens Ø3.1 mm in dome face design. Light pipe lengths from 2.5 to 3.2 mm

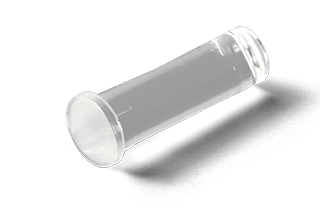

Rigid light guide EPL6
Rigid light pipe EPL6
Light pipe for plug-in mounting from the front of the panel. Transparent lens Ø5 mm in dome face design. Light pipe lengths from 3.2 to 38.1 mm

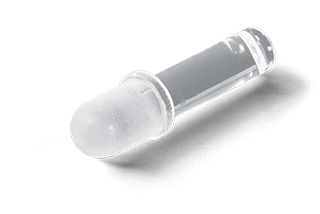

Rigid light guide EPL5
Rigid light pipe EPL5
Light guide for plug-in mounting from the rear of the panel. Transparent lens Ø5 mm in dome face design. Light pipe lengths from 3.2 to 38.1 mm

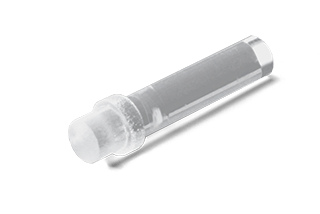

Rigid light guide EPL4
Rigid light pipe EPL4
Light guide for plug-in mounting from the rear of the panel. Transparent lens Ø3 mm in flat face design. Light pipe lengths from 2.5 to 21.1 mm

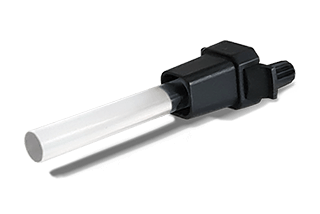

Rigid light guide EPV3
Rigid light pipe EPV3
ZeroLightBleed™ light pipe with adapter for PCB mounting. Transparent lens Ø3 mm in dome or flat face design. Light pipe lengths from 8.9 to 50.8 mm

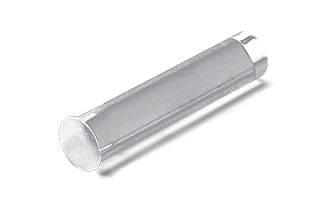

Rigid light guide EPL3
Rigid light pipe EPL3
Light pipe for plug-in mounting from the front of the panel. Transparent lens Ø3 mm in dome face design. Light pipe lengths from 2.5 to 30.5 mm

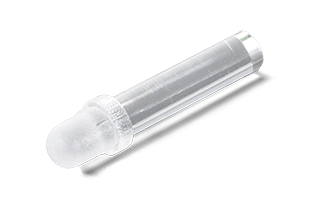

Rigid light guide EPL2
Rigid light pipe EPL2
Light guide for plug-in mounting from the rear of the panel. Transparent lens Ø3 mm in dome face design. Light pipe lengths from 2.5 to 19 mm

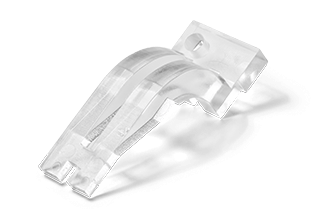

Rigid light guide EL982
Rigid light pipe EL982
Double light pipe for PCB screw mounting. Transparent lenses 2x4 mm in flat face design. Height from panel to light diversion 17,1 mm and length from PCB to panel 37,5 mm

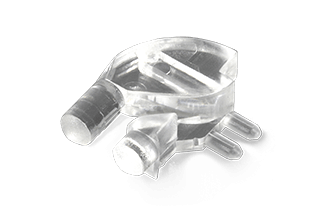

Rigid light guide EL96R
Rigid light pipe EL96R
Piggyback double light pipe for PCB plug-in mounting. Transparent lens Ø3 mm in dome face design. Height from panel to light diversion 7,5 mm and length from PCB to panel 8 mm

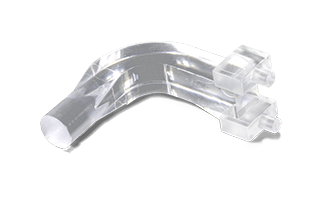

Rigid light guide EL95R
Rigid light pipe EL95R
Light pipe for PCB plug-in mounting. Transparent lens Ø5,8 mm in dome face design. Height from panel to light diversion 22,5 mm and length from PCB to panel 22,3 mm

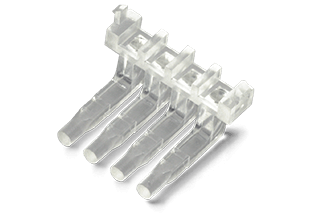

Rigid light guide EL954
Rigid light pipe EL954
Fourfold light pipe for PCB plug-in mounting. Transparent lens Ø2,8 mm in flat face design. Heights from panel to light diversion from 5 to 15 mm and lengths from PCB to panel 14 to 20 mm

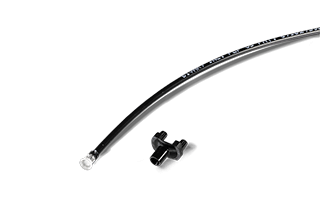

Flexible light guide EFLS
Flexible light guide EFLS
Flexible light guide with Ø4.2 mm lens (without LED) with base for direct PCB mounting. Flexible light guide available in standard lengths from 63.5 to 914.4 mm.

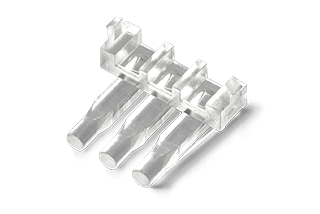

Rigid light guide EL953
Rigid light pipe EL953
Triple light pipe for PCB plug-in mounting. Transparent lens Ø2,8 mm in flat face design. Heights from panel to light diversion from 5 to 15 mm and lengths from PCB to panel 14 to 20 mm

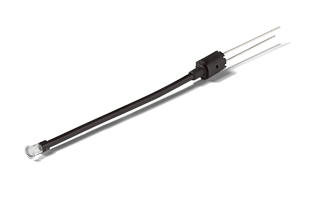

Flexible light guide EFLV
Flexible light guide EFLV
Flexible light guide with Ø4.2 mm lens, incl. LED with axial strands. LED in numerous colours and flexible light guide in standard lengths from 63.5 to 914.4 mm available.

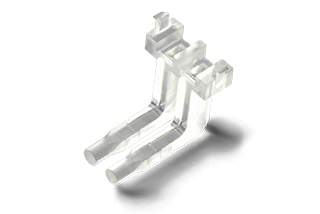

Rigid light guide EL952
Rigid light pipe EL952
Double light pipe for PCB plug-in mounting. Transparent lens Ø2,8 mm in flat face design. Heights from panel to light diversion from 5 to 15 mm and lengths from PCB to panel 14 to 20 mm

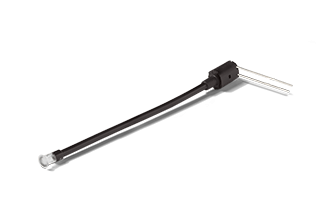

Flexible light guide EFL9
Flexible light pipe EFL9
Flexible light guide with Ø4.2 mm lens, incl. LED with radial strands. LED in numerous colours and flexible light guide in standard lengths from 63.5 to 914.4 mm available.

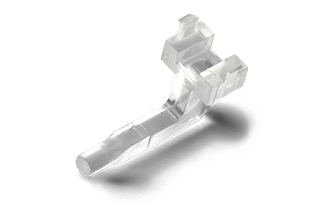

Rigid light guide EL951
Rigid light pipe EL951
Light pipe for PCB plug-in mounting. Transparent lens Ø2,8 mm in flat face design. Heights from panel to light diversion from 5 to 15 mm and lengths from PCB to panel 14 to 20 mm

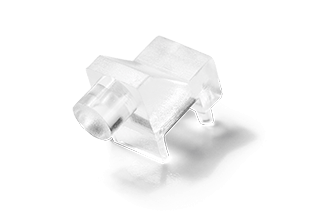

Rigid light guide EL93
Rigid light pipe EL93
Light pipe for direct PCB plug-in mounting. Transparent lens Ø3 mm with round or flat face. Heights from panel to light diversion from 3.8 up to 17.8 mm

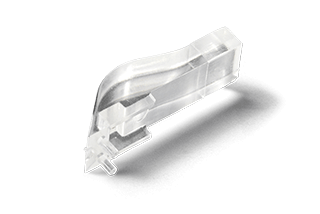

Rigid light guide EL92F
Rigid light pipe EL92F
Light pipe for direct plug-in mounting on the PCB. Square lens size 3 x 5.5 mm in flat face design.

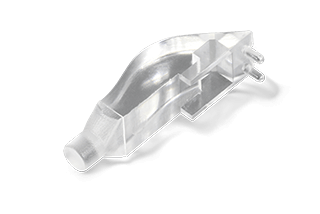

Rigid light guide EL91F
Rigid light pipe EL91F
Light pipe for direct plug-in mounting on the PCB without anti rotation pin. Lens size Ø3 mm in flat face design.

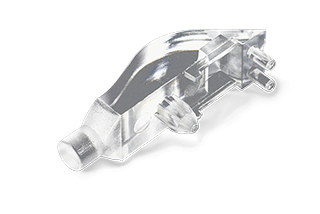

Rigid light guide EL90F
Rigid light pipe EL90F
Light pipe for direct plug-in mounting on the PCB with anti rotation pin. Lens with Ø3 mm in flat face design.
