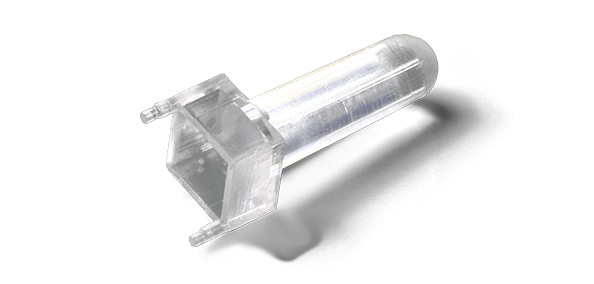

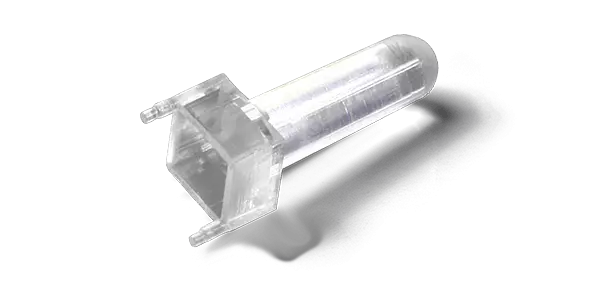

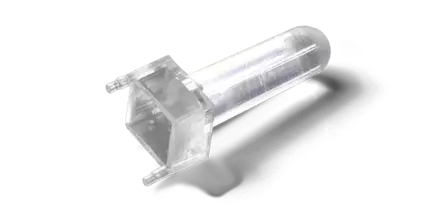

Rigid light pipe EVL1
Light pipe for PCB plug-in mounting. Transparent lens Ø3 mm in dome or in flat face design. Light pipe lengths from 2.4 to 13.8 mm
| 405869 EVL1 R-3,7 | 405956 EVL1 F-10,0 | 405957 EVL1 F-8,8 | 405966 EVL1 F-5,0 | 406009 EVL1 R-5,0 | 406042 EVL1 R-6,2 | 406328 EVL1 R-2,4 | 406358 EVL1 R-7,5 | 406366 EVL1 R-8,8 | 406369 EVL1 R-11,3 | 406417 EVL1 R-10,0 | 406522 EVL1 F-3,7 | 406664 EVL1 F-2,4 | 407208 EVL1 F-7,5 | 407214 EVL1 F-6,2 | 409128 EVL1 F-11,3 | 411351 EVL1 F-12,6 | 411352 EVL1 F-13,6 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate |
| Colour | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent |
| Number of optical fibers | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe |
| Ø Face / Lens in mm | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Face/ Lens profil | round and curved | round and flat | round and flat | round and flat | round and curved | round and curved | round and curved | round and curved | round and curved | round and curved | round and curved | round and flat | round and flat | round and flat | round and flat | round and flat | round and flat | round and flat |
| LED included | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No |
| Length x in mm | 3,7 | 10 | 8,8 | 5 | 5 | 6,2 | 2,4 | 7,5 | 8,8 | 11,3 | 10 | 3,7 | 2,4 | 7,5 | 6,2 | 11,3 | 12,6 | 13,6 |
| Assembly type | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount | board mount |
