Sensor Accessories
Plugs, plugs with cables, adjustment knobs, ICS, couplings and more

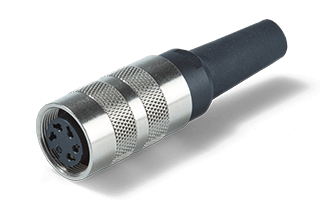

Connector without cable STE
Connector without cable in angled / straight different versions, suitable for our sensors
- M9…M16 thread
- With appropriate number of poles
- Degree of protection IP40 ... IP69k
- Angled or straight
- Shielded, shieldable, not shielded

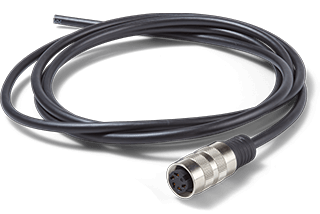

Connector with cable STK
Connector with cable in angled / straight different versions, suitable for our sensors
- M8…M16 thread
- With appropriate number of poles
- Degree of protection IP67... IP69k
- Angled or straight
- Shielded, not shielded

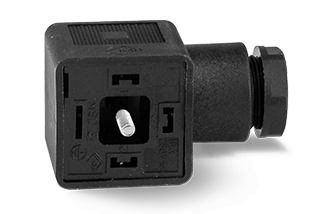

Valve connector STV
Valve connector with or without cable suitable for our linear sensors
- 3 poles + PE
- Angled
- IP65 without cable / IP67 with cable
- Not shielded

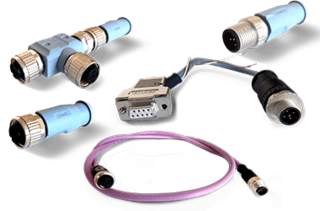

CANbus Accessories
Accessories for MEGATRON CAN rotary encoders with M12 connectors
- Cables with M12 connectors from 0.5 m up to 10 m
- T- and Y-pieces
- Terminators with integrated 120 Ohm resistor
CANopen starter-kit with, includes:
- PCAN-View USB-interface
- Cables, T-/Y-pieces, terminators
- Drivers/software on optical disc

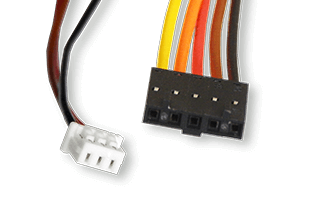

Molex connector with cable
Molex connector in 3, 4 or 5 poles with 500 mm cable length

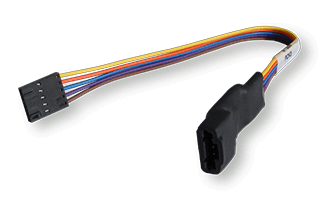

TTL to Open Collector Converter PCK3
Suitable for optical incremental encoders with single ended TTL output A, B, Z (Index)
- For single ended TTL output A, B, Z (index)
- Incl. MOLEX 5-pin male and female, RM2.54
- Supply voltage 9.5…32 V / DC
- PCK3 feeds connected encoder with 5 V / DC
- With signal cable, total length including plug / coupling 220 mm

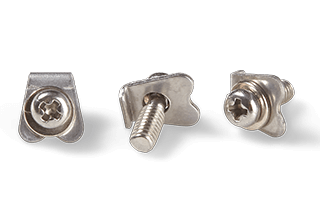

Servomount Fixing Nail SFN
Servomount fixing nail for mounting of our servo flange potentiometers and linear sensors

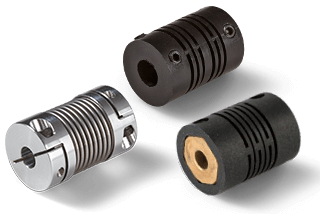

Shaft couplings
Shaft couplings MAK, MSK, M495 and ESM for encoders and potentiometers for coupling mechanics of the application
- Connect two shafts, even with different diameters
- Absorb larger angular and radial deviations
- Have a low inertia
- Do not cause a change in the transmission speed
- Damp torsional vibrations
- Serve as mechanical protection against oversized pairs of forces

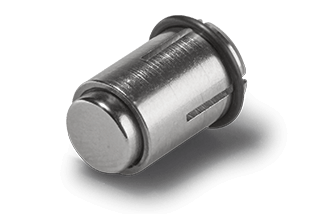

Push-On-Magnetholder MHA
Push-on stainless steel precision magnet holders for kit-encoders in most common shaft diameters
- Magnet holder made of stainless steel incl. magnet
- Perfect for Hall kit encoders with single or redundant electronic
- Available for shaft diameters 3 mm, 3,175 mm (1/8“), 4 mm, 5 mm, 6 mm, 6.35 mm (1/4“), 8 mm, 10 mm

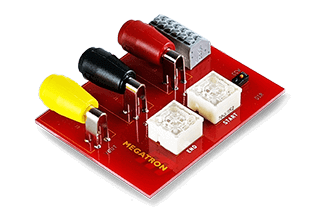

Programmer PRO for magnetic sensors
The programmer offers the easy, fast and secure parameterization of MEGATRON`s magnetic rotary encoders
- Plug & Play programmer for parameterization of Hall Single-/Multiturn rotary encoders
- Allows the parameterization of one rotary encoder 10,000 times

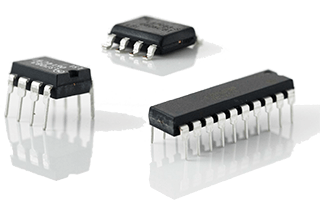

Integrated circuits as counters and for the control of counters
ICS - can be combined with optical rotary encoders and linear sensors with incremental output
Adjustment knob SKT
Adjustment knob in Ø26 mm housing with 50 dashes, revolution counter (10rev.) and locking mechanism
- Knob with 50 dashes
- Revolution counter for 10 revolutions
- With locking mechanism
- For 3…6.35 mm shaft
Adjustment knob MCD
Adjustment knob in Ø30,5 mm housing with 3 digit display (10 rev.) and locking mechanism
- Knob with 3 digit display
- With locking mechanism
- For 3…6.35 mm shafts
- MCDK - version without decorative ring around the lens
Adjustment knob MF
Miniature adjustment knob with 50 dashes and revolution counter (10 rev.) in 18,5 x 15 mm housing and locking mechanism
- Miniature knob with 50 dashes and 10-turn counter
- With locking mechanism and flexible coupling
- Housing in silver or black
- MF for vertical and MFA for horizontal mounting
- For 3…4 mm shafts
Adjustment knob IMT
Adjustment knob with 50 dashes, revolution counter (20 rev.) and locking mechanism
- Knob with 50 dashes
- Revolution counter for 20 revolutions
- With locking mechanism
- For 3…6.35 mm shaft
Adjustment knob DAT
Adjustment knob in Ø24 mm housing, lock mechanism and 3-digits role
- Adjustment knob with 3-digits role
- With locking mechanism (on request without)
- For 6.00 mm and 6.35 mm shafts
Adjustment knob SKK
Adjustment knob with cardan coupling, lock device, 50 dashes and revolution counter (20 rev.) in Ø22 mm housing
- Knob with 50 dashes
- Revolution counter for 20 revolutions
- With locking mechanism and cardan coupling
- For 3…6.35 mm shaft
Adjustment knob NKK
Adjustment knob in Ø46 mm housing with 100 dashes, revolution counter (20 rev.), locking mechanism and a cardan coupling
- Knob with 100 dashes
- Revolution counter for 20 revolutions
- With locking mechanism and cardan coupling
- For 6…6.35 mm shaft
Adjustment knob MCF
Adjustment knob in Ø27 mm housing with 3 digit display (10 rev.) and locking mechanism
- Knob with 3 digit display
- With locking mechanism
- For 3…6.35 mm shafts
- MCFK - version without decorative ring around the lens
Adjustment knob EKM
Adjustment knob in Ø33 mm and grip recess for 6 mm shafts in colours grey and black
Adjustment knob DCD
Adjustment knob in 26 x 44 mm housing with 3 or 4 digit display for 10 or 100 revolutions and locking mechanism
- Knob with 3 or 4 digit display
- For 10 or 100 revolutions
- With locking mechanism
- For 3…6.35 mm shafts
- Housing in grey or black
Adjustment knob IMU
Adjustment knob with 100 dashes, revolution counter (20 rev.) and locking mechanism
- Knob with 100 dashes
- Revolution counter for 20 revolutions
- With locking mechanism
- For 3…6.35 mm shaft
