Drawing light guide EPLC3
Rigid light guide EPLC3

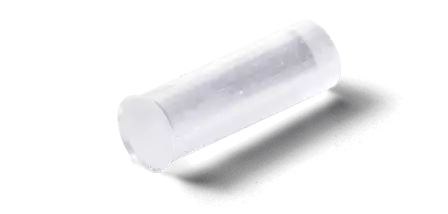

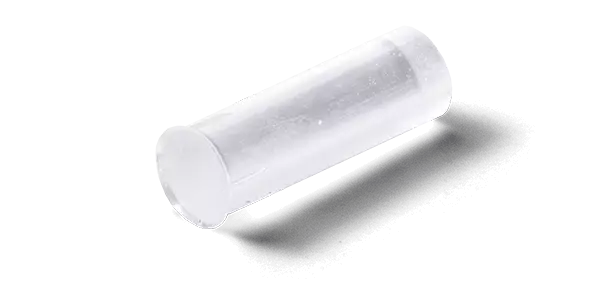

Rigid light pipe EPLC3

Light guide for plug-in mounting from the front of the panel. Transparent lens Ø3 mm in flat face design. Light pipe lengths from 2.5 to 12.7 mm

Description
Close
Product description: Rigid light pipe EPLC3

Product variants

3 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
433193
EPLC3-2,5 LICHTLEITER
433201
EPLC3-3,2 LICHTLEITER
433202
EPLC3-6,4 LICHTLEITER
Material polycarbonate polycarbonate polycarbonate
Colour transparent transparent transparent
Ø Outer in mm 3,1 3,1 3,1
Number of optical fibers 1 light pipe 1 light pipe 1 light pipe
Ø Face / Lens in mm 3,3 3,3 3,3
Face/ Lens profil round and flat round and flat round and flat
LED included No No No
Ø optical fiber in mm 2,9 2,9 2,9
Length x in mm 2,5 3,2 6,4
Assembly type panel press-fit front panel press-fit front panel press-fit front
