Precision resistors

Precision resistors for very high accuracy

Measuring resistors are used as "normal" in applications for current and voltage measurement. Due to their purpose, measuring resistors are therefore basically precision resistors and must have very high accuracy. With peak values of up to ±0.005% in resistance tolerance and a temperature coefficient from < ±1 ppm/°C, these ultra-precise measuring resistors are designed for high-precision instrument construction.

Crosswise through almost all resistor technologies precision resistors can be manufactured as power resistor, voltage divider, shunt or SMD with the required accuracy. Precision resistors are very often individual components and exactly tailored to the needs of the application.

Within the scope of our "Resistor Engineering" we advise you on the best functional and economical solution. With assured quality products and high delivery reliability, we focus on long-term partnerships and accompany you throughout the entire life of your application.


Guide for Precision Resistors
Close

What is a precision resistor?

Measuring resistors are ohmic resistors which have to meet the particularly high requirements of precision measurement technology. Therefore, they are precision resistors without exception. They are used for current and voltage measurement and are usually used in voltage divider circuits. Because of their precise, stable resistance value, currents can be measured accurately if the voltage is known exactly (and vice versa). Depending on the application, different types of precision resistors are suitable for this task. Among them are special power resistors and shunt resistors, which are suitable for applications with high voltages and/or currents. The design can be very different and the term measurement resistor is used when the application is about solving a measurement task.


Tips for precision resistors

The range of measuring resistors and the application field are so broad that a simple statement about which resistor is suitable and when cannot be answered in a generalized way. One can generalize the technological characteristics due to the respective design.
Due to their design, measuring resistors with resistive elements made of wire (i.e. wirewound resistors) have an inductance that limits their use at high frequencies. Special winding procedures are used here to attempt to reduce this effect significantly at the relevant frequencies in the application. They offer the best possibility to achieve an exact resistance value with very good resistance tolerances. This advantage is therefore especially useful when a special value of the total resistance has to be achieved which is not available as standard product. However, if this is not required, metal foil and metal film resistors are usually the better choice today because they do not have these frequency effects. However, on the one hand the working temperature range is limited compared to wire elements and not all of them are suitable for higher power consumption.


Features of a precision resistor

Simply put, a precision resistor is a "more accurate" resistor compared to conventional products that are available in bulk. In addition to the generally higher quality requirements, the following main characteristics are decisive for the use of the term "precision resistor", depending on the design, in order to distinguish these resistors from "standard goods" or "mass-produced goods":

  • Much tighter resistance tolerances
  • Production of precise resistance values according to requirements / function
  • Lower temperature coefficient (TK value)
  • Far better long-term behaviour
  • Larger special temperature ranges (partly up to 300%)
  • Reduced current noise
  • Suppression of inductance and/or capacitance effects
  • Special housings / connections Four-wire or Kelvin measuring method

Depending on the technology and method, the better tolerance is achieved by material selection or by selection. The temperature coefficient, on the other hand, is a material property throughout. A better long-term behaviour is achieved by using high-quality materials and by artificial ageing or preloading.

 Example NC550 @ 100 kΩConventional carbon film resistor "Noname" @100 kΩ

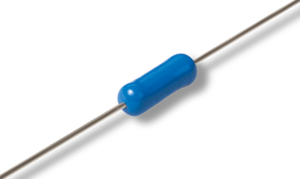

 Metal-Film_resistor_NiCrcarbon_film_resistor
Resistance tolerance

0.05%

±5%
Temperature coefficient TC±3 ppm / °C-700 up to 0 ppm / °C
Technology / MaterialMetal film / NiCr alloyCarbon layer

The table shows a comparison of a precision wirewound resistor of our product range with a conventional, comparable carbon film resistor.


Precision resistor types

In our portfolio for resistors you will find exclusively fixed resistors. This means that our resistors are selected according to a fixed ohmic value. Variable resistors, if you like, can be found in our portfolio for potentiometers. However, we recommend not to use these products as variable resistors.
Basically all our resistors are precision resistors due to their quality, function and performance, and are suitable for many applications. The narrow resistance tolerances, precisely selectable ohmic values, as well as the stability and long-term behaviour clearly differentiate them from standard resistors.

We offer fixed resistors in the following technologies:

  • Wirewound resistors
  • Metal film resistors
  • Metal foil resistors
  • Full metal resistors
Scroll
6 results found
wirewound resistor ASTRO2
Precision Resistor ASTRO2 - wirewound
Wired resistor with extreme wide resistance range of 0.01Ω..6MΩ, tolerance up to ±0.005% and max. working voltage of 900V
  • Resistance range of 0,01..6MΩ
  • Exact values up to 0,005% resistance tolerance
  • Temperature coefficient up to ±10ppm/°C
  • Very long-term stable ±100ppm/year
wirewound resistor ASTRO5
Precision Resistor ASTRO5 - wirewound
Radial-wired resistor with wide resistance range of 0.01Ω..1MΩ and tolerance up to ±0.005%
  • Resistance range of 0.01...1MΩ
  • Exact values up to 0.005% resistance tolerance
  • Temperature coefficient up to ±10ppm/°C
  • Very long-term stable ±100ppm/year
precision resistor NC550
Precision Resistor NC550 - metal film
Metal film resistor with wide resistance range of 1Ω…5MΩ and resistance tolerance up to ±0.05%
  • Resistance values of 1Ω…5MΩ
  • Resistance tolerances up to ±0,05%
  • Temperature coefficient from ±3ppm/°C
  • Rated load 0,6 watts @40 °C
  • Low inductance version (optional)
  • Preloaded @100 h rated load (optional)
precision resistor UMX
Precision Resistor UMX - metal film
Radial wired resistor with resistance range of 10Ω…1MΩ, resistance tolerance up to ±0,01% and max.working voltage of 500V
  • Resistance values of 10Ω…1MΩ
  • Temperature coefficient from ±5ppm/°C
  • Power rating up to 0,5 Watt @70 °C
  • Low induction and capacitive free design
  • Robust epoxy housing
precision resistor ultra MZH
Ultra Precision Resistor MZH - metal foil
Ultra-precise zero-TCR-resistor with resistance tolerance up to ±0,005% in metal housing
  • TCR of almost zero
  • Metal foil resistor with high long-term stability
  • Resistance range 100Ω…100kΩ
  • High precision, resistance tolerances from ± 0,005%
  • Hermetically sealed metal housing
precision resistor MR
Precision Resistor MR - metal foil
Metal foil resistor with extended temperature range of -65 °C…+175 °C, power rating up to 0,5W @125 °C and wide TC range of ±1ppm…±15ppm
  • Temperature coefficient up to ±1ppm/°C
  • Very high long-term stability
  • Resistance values from 1Ω…400kΩ
  • Exact values up to ±0,005% resistance tolerance
  • Low current noise
  • Robust epoxy housing
