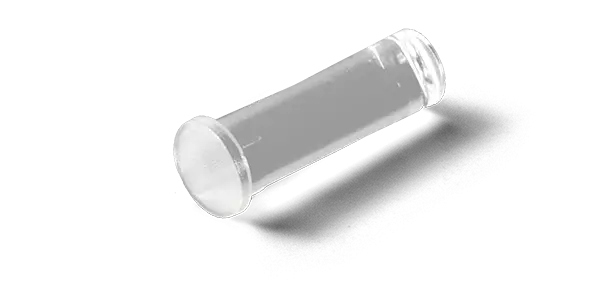

Rigid light pipe EPL6
Light pipe for plug-in mounting from the front of the panel. Transparent Ø5 mm dome lens. Light pipe lengths from 3.2 to 38.1 mm
Product variants
10 variant(s) found
Can't find the product you want in the list? It is in the drawing! Just click here:
Product enquiry
| 407364 EPL6 12,7 LICHTLEITER | 407596 EPL6 6,4 LICHTLEITER | 407978 EPL6 15,9 LICHTLEITER | 408132 EPL6 19,0 LICHTLEITER | 408135 EPL6 25,4 LICHTLEITER | 408281 EPL6 3,2 LICHTLEITER | 408511 EPL6 9,5 LICHTLEITER | 408563 EPL6 38,1 LICHTLEITER | 409285 EPL6 8,9 LICHTLEITER | 409741 EPL6 31,8 LICHTLEITER | |
|---|---|---|---|---|---|---|---|---|---|---|
| Material | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate |
| Colour | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent | transparent |
| Ø Outer in mm | 5,0 | 5,0 | 5,0 | 5,0 | 5,0 | 5,0 | 5,0 | 5,0 | 5,0 | 5,0 |
| Number of optical fibers | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe |
| Ø Face / Lens in mm | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Face/ Lens profil | round and curved | round and curved | round and curved | round and curved | round and curved | round and curved | round and curved | round and curved | round and curved | round and curved |
| LED included | No | No | No | No | No | No | No | No | No | No |
| Ø optical fiber in mm | 3,9 | 3,9 | 3,9 | 3,9 | 3,9 | 3,9 | 3,9 | 3,9 | 3,9 | 3,9 |
| Length x in mm | 12,7 | 6,4 | 15,9 | 19 | 25,4 | 3,2 | 9,5 | 38,1 | 8,9 | 31,8 |
| Assembly type | panel press-fit front | panel press-fit front | panel press-fit front | panel press-fit front | panel press-fit front | panel press-fit front | panel press-fit front | panel press-fit front | panel press-fit front | panel press-fit front |
