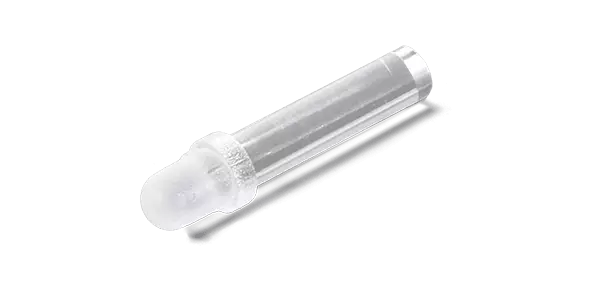

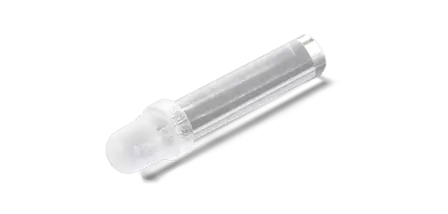

Rigid light pipe EPL2
Light guide for plug-in mounting from the rear of the panel. Transparent lens Ø3 mm in dome face design. Light pipe lengths from 2.5 to 19 mm
Product variants
405652 EPL2 3,2 LICHTLEITER | 405676 EPL2 6,4 LICHTLEITER | 405705 EPL2 19,0 LICHTLEITER | 405864 EPL2 9,5 LICHTLEITER | 405950 EPL2 12,7 LICHTLEITER | 406410 EPL2 15,9 LICHTLEITER | 409161 EPL2 8,9 LICHTLEITER | |
---|---|---|---|---|---|---|---|
Material | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate |
Colour | transparent | transparent | transparent | transparent | transparent | transparent | transparent |
Ø Outer in mm | 3,8 | 3,8 | 3,8 | 3,8 | 3,8 | 3,8 | 3,8 |
Number of optical fibers | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe |
Ø Face / Lens in mm | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Face/ Lens profil | round and curved | round and curved | round and curved | round and curved | round and curved | round and curved | round and curved |
LED included | No | No | No | No | No | No | No |
Ø optical fiber in mm | 2,8 | 2,8 | 2,8 | 2,8 | 2,8 | 2,8 | 2,8 |
Length x in mm | 3,2 | 6,4 | 19 | 9,5 | 12,7 | 15,9 | 8,9 |
Assembly type | panel press-fit rear | panel press-fit rear | panel press-fit rear | panel press-fit rear | panel press-fit rear | panel press-fit rear | panel press-fit rear |
