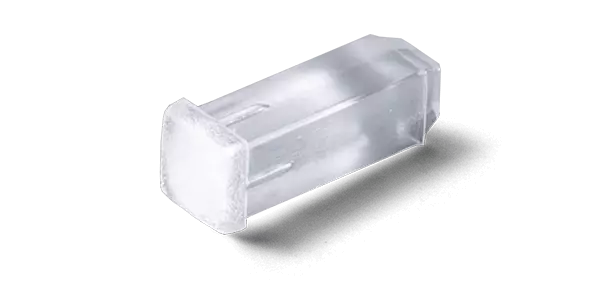

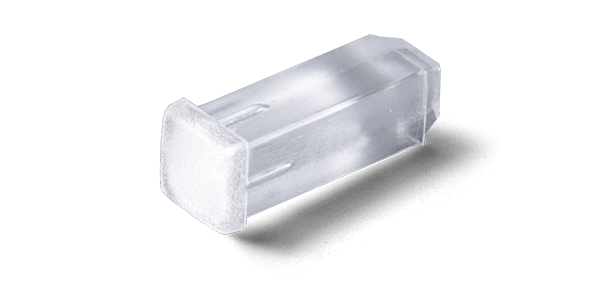

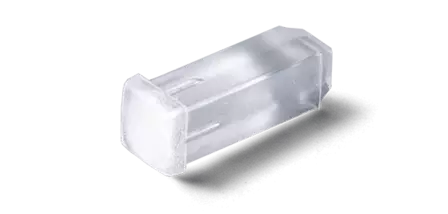

Rigid light pipe ELQ2

Light pipe for plug-in mounting from the front of the panel. In square shaped transparent lens design with 2 mm. Light pipe lengths from 2.5 to 12.7 mm.

Product variants

3 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
433191
ELQ2-2,5 LICHTLEITER
433199
ELQ2-3,2 LICHTLEITER
433200
ELQ2-6,4 LICHTLEITER
Material polycarbonate polycarbonate polycarbonate
Colour transparent transparent transparent
Number of optical fibers 1 light pipe 1 light pipe 1 light pipe
Face/ Lens profil quadratic quadratic quadratic
LED included No No No
Length x in mm 2,5 3,2 6,4
Assembly type panel press-fit front panel press-fit front panel press-fit front
