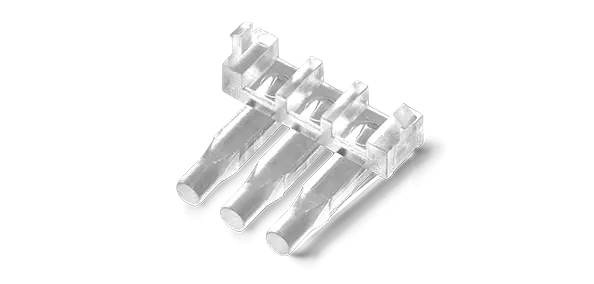

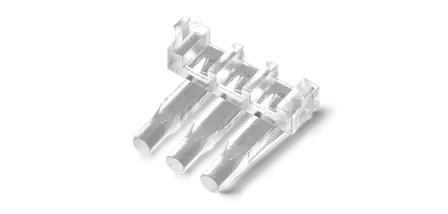

Triple light pipe for PCB plug-in mounting. Transparent lens Ø2,8 mm in flat face design. Heights from panel to light diversion from 5 to 15 mm and lengths from PCB to panel 14 to 20 mm

Description
Close
Product description: Rigid light pipe EL953

Product variants

9 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
409367
EL 9530 LICHTLEITER
409368
EL 9535 LICHTLEITER
409369
EL 9537 LICHTLEITER
410090
EL 9531 LICHTLEITER
410091
EL 9532 LICHTLEITER
410092
EL 9533 LICHTLEITER
410093
EL 9534 LICHTLEITER
410094
EL 9536 LICHTLEITER
410095
EL 9538 LICHTLEITER
Material polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate
Colour transparent transparent transparent transparent transparent transparent transparent transparent transparent
Number of optical fibers 3 light pipes 3 light pipes 3 light pipes 3 light pipes 3 light pipes 3 light pipes 3 light pipes 3 light pipes 3 light pipes
Ø Face / Lens in mm 2,8 2,8 2,8 2,8 2,8 2,8 2,8 2,8 2,8
Face/ Lens profil round and flat round and flat round and flat round and flat round and flat round and flat round and flat round and flat round and flat
Total length optical fiber in mm 16 22 19 19 22 16 19 16 22
Length lens to center bottom part in mm 14 20 17 17 20 14 17 14 20
Central line (height, X) in mm 5 10 15 5 5 10 10 15 15
Assembly type board mount board mount board mount board mount board mount board mount board mount board mount board mount
