Rigid light guide EL954

Rigid light pipe EL954

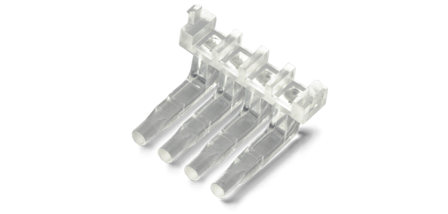

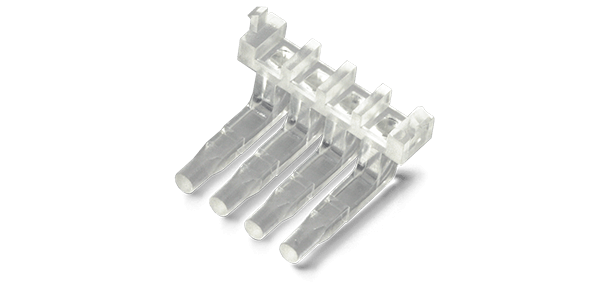

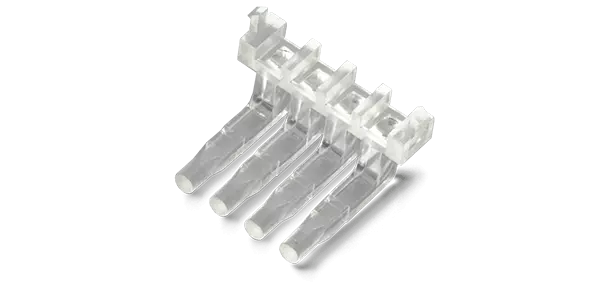

Fourfold light pipe for PCB plug-in mounting. Transparent lens Ø2,8 mm in flat face design. Heights from panel to light diversion from 5 to 15 mm and lengths from PCB to panel 14 to 20 mm

Product variants

Can't find the product you want in the list? It is in the drawing! Just click here: Product enquiry

	409370 EL 9541 LICHTLEITER	409371 EL 9544 LICHTLEITER	409372 EL 9547 LICHTLEITER	410099 EL 9540 LICHTLEITER	410100 EL 9542 LICHTLEITER	410101 EL 9543 LICHTLEITER	410102 EL 9545 LICHTLEITER	410103 EL 9546 LICHTLEITER	410104 EL 9548 LICHTLEITER
Material	polycarbonate	polycarbonate	polycarbonate	polycarbonate	polycarbonate	polycarbonate	polycarbonate	polycarbonate	polycarbonate
Colour	transparent	transparent	transparent	transparent	transparent	transparent	transparent	transparent	transparent
Number of optical fibers	4 light pipes	4 light pipes	4 light pipes	4 light pipes	4 light pipes	4 light pipes	4 light pipes	4 light pipes	4 light pipes
Ø Face / Lens in mm	2,8	2,8	2,8	2,8	2,8	2,8	2,8	2,8	2,8
Face/ Lens profil	round and flat	round and flat	round and flat	round and flat	round and flat	round and flat	round and flat	round and flat	round and flat
LED included	No	No	No	No	No	No	No	No	No
Total length optical fiber in mm	19	19	19	16	22	16	22	16	22
Length lens to center bottom part in mm	17	17	17	14	20	14	20	14	20
Central line (height, X) in mm	5	10	15	5	5	10	10	15	15
Assembly type	board mount	board mount	board mount	board mount	board mount	board mount	board mount	board mount	board mount
