Sharp edges of through-holes can damage the cable sheath and may block an entire application. Grommets are a quick and easy way to defuse the edges of drill holes. A tight fit of the grommet in the drill hole is achieved by overlapping the grommet around the hole. The drill hole is thus optimally prepared for cable entry, because the grommet material prevents cable abrasion during use.
With the ELPAC brand, we offer a wide range of plastic components for PCB construction and electronics housing construction. With high delivery reliability and quality products, we focus on long-term partnerships and accompany you throughout the entire lifespan of your application. Take a look at our B2B shop for components and find out about prices, availability and place your order.

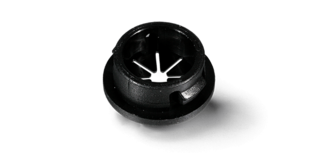

Snap-in mounting grommet for panel thicknesses from 1.57 to 3.2 mm, for cables with Ø7.9 up to Ø27 mm or drill holes with Ø12.7 up to Ø38.1 mm

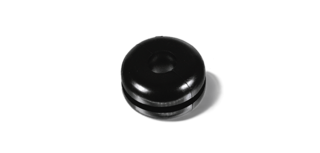

Grommet for panel thickness from 0.8 to 3 mm, for cables with Ø2.8 up to Ø31.2 mm or drill holes with Ø4.8 up to 37 mm
