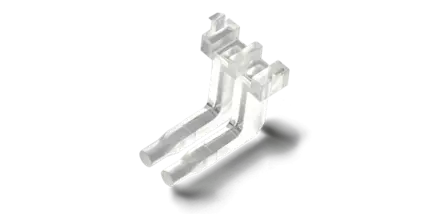

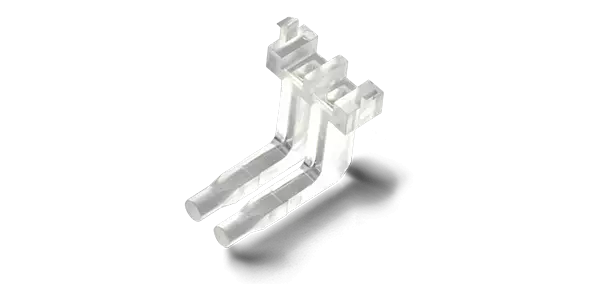

Double light pipe for PCB plug-in mounting. Transparent lens Ø2,8 mm in flat face design. Heights from panel to light diversion from 5 to 15 mm and lengths from PCB to panel 14 to 20 mm

Description
Close
Product description: Rigid light pipe EL952

Product variants

9 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
409365
EL 9521 LICHTLEITER
409366
EL 9527 LICHTLEITER
410083
EL 9520 LICHTLEITER
410084
EL 9522 LICHTLEITER
410085
EL 9523 LICHTLEITER
410086
EL 9524 LICHTLEITER
410087
EL 9525 LICHTLEITER
410088
EL 9526 LICHTLEITER
410089
EL 9528 LICHTLEITER
Material polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate
Colour transparent transparent transparent transparent transparent transparent transparent transparent transparent
Number of optical fibers 2 light pipes 2 light pipes 2 light pipes 2 light pipes 2 light pipes 2 light pipes 2 light pipes 2 light pipes 2 light pipes
Ø Face / Lens in mm 2,8 2,8 2,8 2,8 2,8 2,8 2,8 2,8 2,8
Face/ Lens profil round and flat round and flat round and flat round and flat round and flat round and flat round and flat round and flat round and flat
LED included No No No No No No No No No
Total length optical fiber in mm 19 19 16 22 16 19 22 16 22
Length lens to center bottom part in mm 17 17 14 20 14 17 20 14 20
Central line (height, X) in mm 5 15 5 5 10 10 10 15 15
Assembly type board mount board mount board mount board mount board mount board mount board mount board mount board mount
