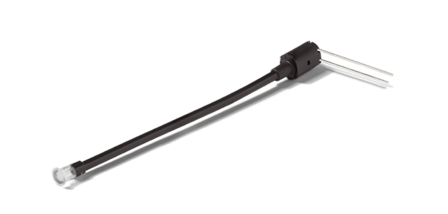

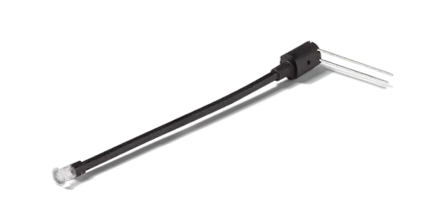

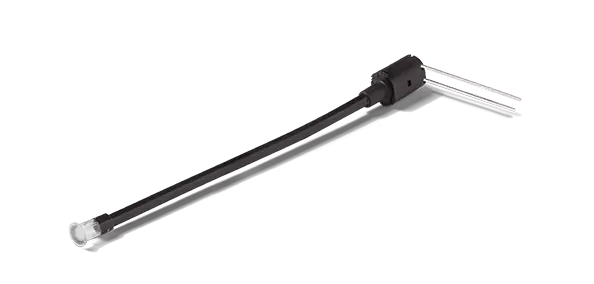

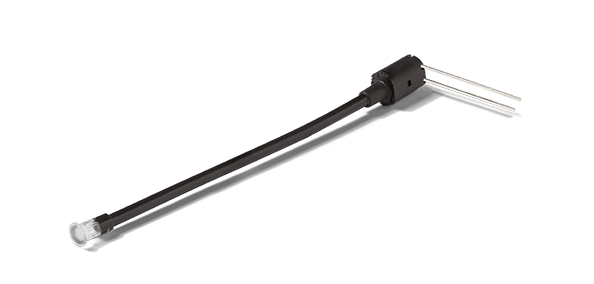

Flexible light pipe EFL9

Flexible light guide with Ø4.2 mm lens, incl. LED with radial strands. LED in numerous colours and flexible light guide in standard lengths from 63.5 to 914.4 mm available.


406623
EFL9 76,2-SG
406624
EFL9 76,2-SR
406625
EFL9 76,2-SY
406759
EFL9 63,5-Y
406792
EFL9 152,4-SR
408938
EFL9 152,4-SG
411423
EFL9 304,8-SY
411847
EFL9 914-SR
Number of optical fibers 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe
Ø Face / Lens in mm 4,2 4,2 4,2 4,2 4,2 4,2 4,2 4,2
Face/ Lens profil round and flat round and flat round and flat round and flat round and flat round and flat round and flat round and flat
LED included Yes Yes Yes Yes Yes Yes Yes Yes
LED light color super green super red super yellow yellow super red super green super yellow super red
LED luminous intensity in mcd 50 60 50 50 60 50 50 60
Material face polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate
Color face transparent transparent transparent transparent transparent transparent transparent transparent
Length x in mm 568 645 590 63,5 648 152,4 304,8 914
Wavelength in nm 568 645 590 590 648 568 590 645
