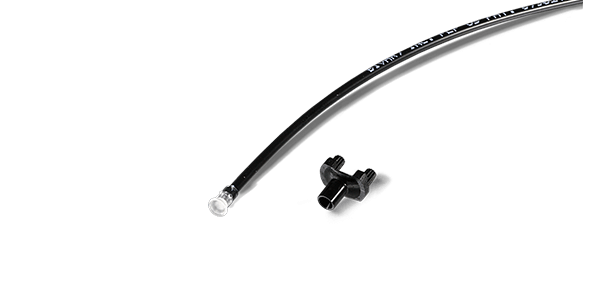

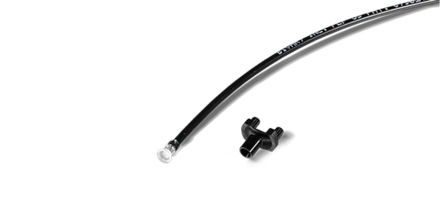

Flexible light guide EFLS

Flexible light guide with Ø4.2 mm lens (without LED) with base for direct PCB mounting. Flexible light guide available in standard lengths from 63.5 to 914.4 mm.

Product variants

6 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
406184
EFLS 76,2
406540
EFLS 304,8
406572
EFLS 152,4
406573
EFLS 228,6
433020
EFLS 63,5
433026
EFLS-7-360,6-7MM LINSE
Number of optical fibers 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe
Ø Face / Lens in mm 4,2 4,2 4,2 4,2 4,2 7,0
Face/ Lens profil round and flat round and flat round and flat round and flat round and flat round and flat
LED included No No No No No No
Material face polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate
Color face transparent transparent transparent transparent transparent transparent
Length x in mm 76,2 304,8 152,4 228,6 63,5 360,6
