Multiturn Encoders

What is special about multiturn encoders?

Guide for Multiturn Encoders

Multiturn Encoders

Magnetic multiturn encoders with analogue outputs for angular ranges up to 43 bit

Multiturn encoders can measure angles over 360°. Our range includes absolute encoders with analogue outputs that can measure angles up to 43 bits. Some variants can be parameterized by the customer on site. This means that the electrically effective angle of rotation and the direction of rotation (CW / CCW) can be programmed in the field.

Multiturn encoders can, as the name suggests, measure several revolutions. So called "True-Power-On" multiturn encoders are used to ensure that the angular position can be measured exactly again when the shaft position changes after a voltage-free state. We offer multiturn encoders with gear as well as with volatile memory of the angular position.

For demanding applications, technical product adaptation is often required. MEGATRON is your specialist for these cases. Within the scope of our consultation we decide with you the optimal product for your "design in". With high delivery reliability and assured quality products, we focus on long-term partnerships and accompany you throughout the entire service lifetime of your application.

Guide for Multiturn Encoders

What is a multiturn encoder?

Most encoders that output their angle information as an absolute value can only measure a maximum of one full shaft revolution, since the output value is repeated every 360°. However, it is often not sufficient to measure angle information for only one revolution. If, for example, a mechanism only reaches the end of its range of motion after several rotations, a sensor is required that can measure several rotations. The sensor must be able to "remember" how many rotations it has already completed so that the position of the mechanism within its setting path or setting angle is known to the control electronics. In these and other applications, only multiturn potentiometers were previously available. A great advantage of programmable multiturn encoders is that the start and end position can be programmed in the field in relation to the position of a mechanism. For example, the ETA25PM multiturn encoder can be programmed up to 10 000 times, can measure angles up to 72000° (200 shaft revolutions) and can also be used as a multi-programmable single-turn encoder.

Output signal of a multiturn encoder with a maximum rotation angle of 36000° (100 turns)

Basically, a distinction must be made between whether such an encoder loses its information about the angle of rotation when the supply voltage fails, or whether it can detect rotation even in a voltage-free state. This will be discussed following.

Magnetic multiturn encoders

Many modern magnetic encoders use Hall sensors to measure the angle. A magnet is placed over a sensor chip which measures the orientation of the magnet (for details on the sensor technology, see Absolute Encoder Guide). This can be achieved, for example, by a singleturn encoder with extended functionality, which processes the number of revolutions as well as the angular position. Another possibility is the use of a reduction gear, which is designed for a certain number of revolutions and uses singleturn encoder electronics to detect the angle.

True-Power-On multiturn encoder

So that the information about the number of full revolutions and thus also the correct angle information can be output again exactly after a currentless state, so-called "True Power On" multiturn encoders are used. For example, the HSM22M series offered by MEGATRON guarantees this.
This model offers the possibility of programming the voltage output according to customer-specific requirements. A simple method is to define the desired signal curve by means of interpolation points. Please contact us for more detail information about the possibilities of this technology.

7 results found
Rotary encoder HTx36-Standard
HTx36 - Resolution Level Standard
Absolute or incremental 3D Hall encoder in Ø36 mm metal housing (up to IP67) with numerous electronic, mechanical and software options

Absolute encoder:

  • Single- or multiturn
  • Analogue: Voltage/current output, PWM - 12 bit
  • Digital: SSI, SSI+UVW up to 16 pole pairs, SER, SPI - up to 14 bit
  • Also redundant

Incremental encoder:

  • A, B, Z also differential A, A/, B, B/, Z, Z/
  • OC, TTL, PP signal outputs
  • Free selection of the number of pulses - up to 1024 ppr.
  • UVW signals for motor commutation of DC motors up to 16 pole pairs
Rotary encoder HTx36-High
HTx36E ‐ Resolution Level High
3D Hall encoder with battery- and gear-less true-power-on technology, up to 43 bit resolution, CAN-bus or incremental output, solid or hollow shaft

Absolute rotary encoder:

  • Only digital signal outputs, CANopen, CAN SAE J1939, SSI
  • Patented battery and gear-less true-power-on multiturn technology
  • Singleturn resolution up to 16 Bit
  • Multiturn resolution up to 43 Bit
  • Patented technology for system accuracy < 0.35° (singleturn)

Incremental rotary encoder:

  • From 1 to 16384 ppr in 1 incremental stepwidth order-able ex works
  • Optional user-parameterizable index pulse (Z) position
Rotary encoder FHx58
Extremely robust encoder FHx58
Certified resistance to cleaning agents and disinfectants, tested hygienic construction. Salt-mist resistant housing in IP67+IP69k for high pressure/steam jet cleaning
  • Optimal for the food industry and pharmaceuticals, perfect for offshore applications
  • As absolute encoder (Hall sensor) up to 16 bit singleturn / 43 bit multiturn
  • Battery and gearless multiturn (energy harvesting)
  • CANopen, CAN SAE J1939, SSI Gray/Binary
  • As optoelectronic incremental encoder up to 25000 ppr.
  • ABZ, A, A/,B, B/,Z, Z/ differential, TTL, TTL+RS422 compatible, HTL
  • EWS warning system 1000h before encoder failure
  • Made in Germany

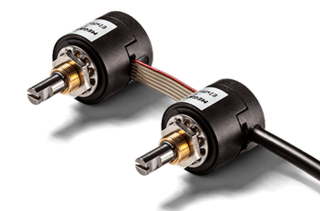

Rotary encoder ETx25K
Encoder ETx25K with 3D Hall as kit versions
Rotary encoder in compact kit design (8 mm housing depth) with flange mounting and wide variety of electronics and software options in single or multiturn variants
  • Single or multiturn encoder
  • 3D Hall µProcessor with digital signal processing, programmable
  • Analogue, incremental or SER, SPI interfaces
  • Housing with very low depth (8 mm)
  • Flange mounting (magnet included)
  • High variety of options and variants
  • Developed and manufactured in Germany
Rotary encoder ETx25F
Encoder ETx25F with 3D Hall for flange mounting
Rotary encoder with 14.5 mm housing depth for flange mounting, in single- or programmable multiturn variants, with wide variety of electronics as well as software options
  • As single- or programmable multiturn encoder
  • 3D Hall µProcessor with digital signal processing
  • Analogue, incremental or SER, SPI interfaces
  • Low housing depth (14.8 mm)
  • Flange mounting
  • High variety of options and variants
  • Developed and manufactured in Germany
Hall effect Multiturn Rotary Encoder ETx25
Programmable multiturn Hall effect angle encoder ETA25PM
Customer programmable multiturn rotary encoder up to 72000° in Ø25 mm housing, analogue output and IP66 - for various angles of rotation
  • Only one multiturn rotary encoder device for various demands
  • Angle range and sense of rotation can be parameterized on site
  • High durability
  • Short delivery time
  • Engineered and Made in Germany
Hall effect Multiturn Rotary Encoder HSM22M
Hall effect multi-turn rotary encoder HSM22M
True power-on multi-turn encoder in Ø22.5 mm metal housing detects angles up to 3600° (= 10 turns) absolutely reliable
  • True-Power-On 10 turn (=3600°) Hall rotary encoder
  • Compact Ø22.5 mm housing
  • 5 V, 12 V or 24 V supply voltage
  • Voltage or current output
  • As option with redundant output electronic
