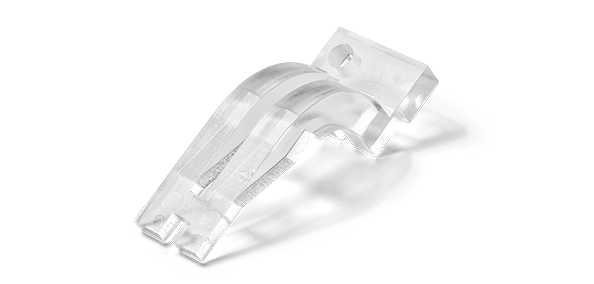

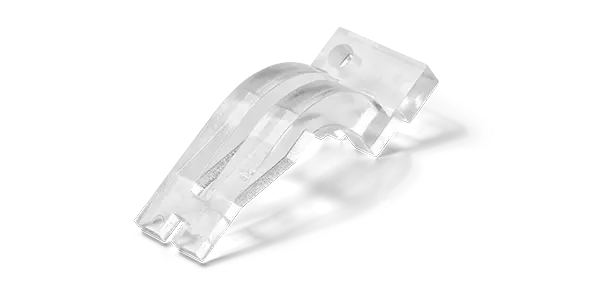

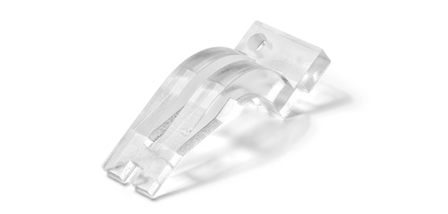

Rigid light pipe EL982

Double light pipe for PCB screw mounting. Transparent lenses 2x4 mm in flat face design. Height from panel to light diversion 17,1 mm and length from PCB to panel 37,5 mm

Product variants

Can't find the product you want in the list? It is in the drawing! Just click here: Product enquiry
Material PMMA
Colour transparent
Number of optical fibers 2 light pipes
Ø Face / Lens in mm 4 x 2
Face/ Lens profil square and flat
LED included No
Length x in mm 37,5
Assembly type board mount
