Adjustment Knobs

Setting knobs with integrated scales or digits

In combination with our potentiometers, our adjustment knobs are ideally suited for precise setpoint setting. So-called analogue adjustment knobs are equipped with a dash scale and digital ones with a digit role. The analogue adjustment knobs with dash scale show the number of full turns in a separate window, the digital adjustment knobs with roller display values from zero to maximum of 9999. Variants with locking mechanism prevent unintentional adjustment of the adjustment knob by vibration or contact.

The correct selection of the knob dimension for operation is of decisive importance. Small knobs allow setpoints to be set faster than larger ones. Larger knobs allow setpoints to be determined more accurately than small ones. For a pleasant haptic impression, it is important to define an appropriate torque for the potentiometer shaft. Please take into account the environmental conditions that could possibly influence the haptic properties.

The adjustment knobs with flexible coupling are ideally suited for demanding applications. The internal mechanics allow a very precise coupling of the potentiometer shaft. The result is a very smooth rotation and a constant torque. Please follow the instructions for mounting our adjustment knobs so that you can fully exploit the haptic advantages of the knobs.

Control knob with digits DAT
Adjustment knob DAT
Adjustment knob in Ø24 mm housing, lock mechanism and 3-digits role
  • Adjustment knob with 3-digits role
  • With locking mechanism (on request without)
  • For 6.00 mm and 6.35 mm shafts
Control knob with dashes MF
Adjustment knob MF
Miniature adjustment knob with 50 dashes and revolution counter (10 rev.) in 18,5 x 15 mm housing and locking mechanism.
  • Miniature knob with 50 dashes and 10-turn counter
  • With locking mechanism and flexible coupling
  • Housing in silver or black
  • MF for vertical and MFA for horizontal mounting
  • For 3..4 mm shafts
Control knob with digits DCD
Adjustment knob DCD
Adjustment knob in 26 x 44 mm housing with 3 or 4 digit display for 10 or 100 revolutions and locking mechanism
  • Knob with 3 or 4 digit display
  • For 10 or 100 revolutions
  • With locking mechanism
  • For 3..6,35 mm shafts
  • Housing in grey or black
Control knob with digits MCD
Adjustment knob MCD
Adjustment knob in Ø30,5 mm housing with 3 digit display (10 rev.) and locking mechanism
  • Knob with 3 digit display
  • With locking mechanism
  • For 3..6,35 mm shafts
  • MCDK - version without decorative ring around the lens
Control knob with digits MCF and MCFK
Adjustment knob MCF
Adjustment knob in Ø27 mm housing with 3 digit display (10 rev.) and locking mechanism
  • Knob with 3 digit display
  • With locking mechanism
  • For 3..6,35 mm shafts
  • MCFK - version without decorative ring around the lens
Control knob with dashes NKK
Adjustment knob NKK
Adjustment knob in Ø46 mm housing with 100 dashes, revolution counter (20 rev.), locking mechanism and a cardan coupling
  • Knob with 100 dashes
  • Revolution counter for 20 revolutions
  • With locking mechanism and cardan coupling
  • For 6..6,35 mm shaft
Control knob with dashes MKT
Adjustment knob MKT
Adjustment knob in Ø31 mm housing with 100 dashes, revolution counter (10 rev.) and locking mechanism
  • Knob with 100 dashes
  • Revolution counter for 10 revolutions
  • With locking mechanism
  • For 3..6,35 mm shaf
Control knob with dashes SKT
Adjustment knob SKT
Adjustment knob in Ø26 mm housing with 50 dashes, revolution counter (10rev.) and locking mechanism
  • Knob with 50 dashes
  • Revolution counter for 10 revolutions
  • With locking mechanism
  • For 3..6,35 mm shaft
Control knob with dashes SKK
Adjustment knob SKK
Adjustment knob with cardan coupling, lock device, 50 dashes and revolution counter (20 rev.) in Ø22 mm housing
  • Knob with 50 dashes
  • Revolution counter for 20 revolutions
  • With locking mechanism and cardan coupling
  • For 3..6,35 mm shaft
Control knob with dashes IMU
Adjustment knob IMU
Adjustment knob with 100 dashes, revolution counter (20 rev.) and locking mechanism
  • Knob with 100 dashes
  • Revolution counter for 20 revolutions
  • With locking mechanism
  • For 3..6,35 mm shaft
Control knob with dashes IMT
Adjustment knob IMT
Adjustment knob with 50 dashes, revolution counter (20 rev.) and locking mechanism
  • Knob with 50 dashes
  • Revolution counter for 20 revolutions
  • With locking mechanism
  • For 3..6,35 mm shaft

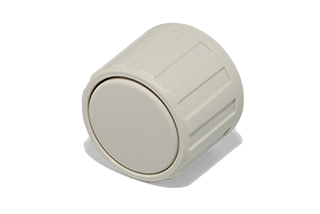

Control knob EKM
Adjustment knob EKM
Adjustment knob in Ø33 mm and grip recess for 6 mm shafts in colours grey and black
