Panel Encoders

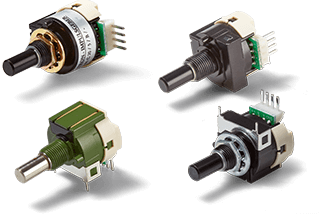

Panel integrated rotary potentiometers and encoders for manual setpoint adjustment

Filter
Placeholder
Conductive Plastic Potentiometer MP10/11
Rotary potentiometer MP11

Miniature rotary potentiometer in Ø13 mm housing

Potentiometer
Placeholder
Conductive Plastic Potentiometer-MP20
Rotary potentiometer MP21

Compact rotary potentiometer with long life and many options

Potentiometer
Placeholder
Rotary potentiometer conductive plastic MPA20
Rotary potentiometer MPA21

Precise and durable potentiometer in Ø22 mm housing with end stops for manual setpoint applications

Potentiometer
Placeholder
Wirewound potentiometer RP19/20
Rotary potentiometer RP19

Compact rotary potentiometer with low installation depth

PotentiometerTandem
Placeholder
Miniature rotary potentiometer AL9
Miniature rotary potentiometer AL9

Miniaturised, economical and precise multiturn rotary potentiometer for moderate actuation in Ø13 mm housing

PotentiometerMultiturn
Placeholder
Multiturn Wirewound Potentiometer AL17/19
Multiturn rotary potentiometer AL17/19

High precision rotary multi-turn potentiometer for very fine manual control

PotentiometerMultiturnTandem
Placeholder
Multiturn Rotary Potentiometer with Knob MCD17
Multiturn Rotary Potentiometer with Knob MCD17

Manual adjuster with integrated rotary knob, locking mechanism and counter display for precise control tasks

PotentiometerMultiturnTandem
Placeholder
Rotary Encoder-ETx25-Hall effect
Hall effect panel encoder ETx25

Manual encoder with various output signals, mechanical stop and increased torque ensures precise manual setpoint setting

VDCmAPWM signalincrementalSerial SPI/SERProtection class IP66
Placeholder
Optoelectronic Manual Encoder MRB
Optoelectronic Manual Encoder MRB

The MRB panel encoder has the widest selection of detent torques, push button operating forces and is suitable for low-power applications

incrementalpushbutton
Placeholder
Optoelectronic Manual Encoder MRS
Optoelectronic Manual Encoder MRS

The MRS panel encoder with up to IP65 has the most compact housing and the largest selection of electrical connections

incrementalpushbuttonProtection class IP65
Placeholder
Panel Encoder MRT
Optoelectronic manual encoder MRT

The MRT panel encoder has the longest push button travel path and is suitable for low-power applications

incrementalpushbutton
Placeholder
Optoelectronic Manual Encoder MRL
Optoelectronic Manual Encoder MRL

Compact 24.5 mm manual adjuster with plastic shaft, detent (with or without) and up to 25 imp/rev

incremental
Placeholder
Optical Encoder SPM
Optical panel encoder SPM

Reliable panel encoder with increased torque provides superior feel and durability

incremental
Placeholder
Optical Encoder SPE
Optoelectronic manual encoder SPE

Compact 22 mm encoder with up to 1000 rpm, selectable torque and selectable bearings

incrementalDifferential
Placeholder
Optoelectronic Handwheel MHU
Optoelectronic Handwheel MHU

Robust Ø60mm handwheel with 100 detents and very small installation depth is perfect for fast setpoint setting.

incremental
Placeholder
Optoelectronic Handwheel MHO
Optoelectronic Handwheel MHO

Premium handwheel in Ø80 mm housing with excellent haptics and 100 detents for very precise and tactile setpoint adjustment

incremental
Conductive Plastic Potentiometer MP10/11
Rotary potentiometer MP11
Miniature rotary potentiometer in Ø13 mm housing
  • Miniature housing with Ø13 mm
  • Ideal for confined spaces
  • With mechanical end stop 310°
  • Lifetime 5 million
  • Robust metal housing
  • Optional back shaft
DetailsProduct enquiry
Conductive Plastic Potentiometer-MP20
Rotary potentiometer MP21
Compact rotary potentiometer with long life and many options
  • Long life and accuracy
  • With mechanical end stop 320°
  • Compact sensor with low installation depth, 12 mm
DetailsProduct enquiry
Rotary potentiometer conductive plastic MPA20
Rotary potentiometer MPA21
Precise and durable potentiometer in Ø22 mm housing with end stops for manual setpoint applications
  • Long life and high accuracy
  • With mechanical end stop (320°)
DetailsProduct enquiry
Wirewound potentiometer RP19/20
Rotary potentiometer RP19
Compact rotary potentiometer with low installation depth
  • With mechanical end stop 320°
  • Compact sensor with 12 mm installation depth
  • With many options
DetailsProduct enquiry
Miniature rotary potentiometer AL9
Miniature rotary potentiometer AL9
Miniaturised, economical and precise multiturn rotary potentiometer for moderate actuation in Ø13 mm housing
  • Available as 3 turn, 5 turn or 10 turn
  • With axial or radial connections or direct PCB mounting
  • Lifetime over 200,000 turns
  • Independent linearity ±0.35 % (optionally up to ±0.1 %)
  • Resistance values 20 Ohm to 100 kOhm
  • Operating temperature range -55 °C to +105 °C
  • Rated load capacity up to 1.5 W

DetailsProduct enquiry
Multiturn Wirewound Potentiometer AL17/19
Multiturn rotary potentiometer AL17/19
High precision rotary multi-turn potentiometer for very fine manual control
  • Precise and highly sensitive multiturn potentiometer
  • With many options
DetailsProduct enquiry
Multiturn Rotary Potentiometer with Knob MCD17
Multiturn Rotary Potentiometer with Knob MCD17
Manual adjuster with integrated rotary knob, locking mechanism and counter display for precise control tasks
  • Electrical angle of rotation 1080° to 3600° (3, 5 or 10 turns)
  • Total resistance 100 Ohm to 100 kOhm
  • Linearity ±0.25 % (option: ±0.15 % or ±0.10 %)
  • Lifetime over 1 million turns
  • Temperature range -30 °C to +60 °C
  • Radial solder lugs or axial terminal connection
  • Mechanical counter range 000 to 999

DetailsProduct enquiry
Rotary Encoder-ETx25-Hall effect
Hall effect panel encoder ETx25
Manual encoder with various output signals, mechanical stop and increased torque ensures precise manual setpoint setting
  • Increased torque (optional centre detent)
  • Mostly insensitive to vibrations
  • Defined mechanical adjustment range
  • High quality and long durability
  • Short delivery time
  • Engineered and Made in Germany
DetailsProduct enquiry
Optoelectronic Manual Encoder MRB
Optoelectronic Manual Encoder MRB
The MRB panel encoder has the widest selection of detent torques, push button operating forces and is suitable for low-power applications
  • Largest selection of detent torques and push button operating forces
  • Short push button travel path
  • Low power consumption <10 mA
  • Lifespan > 1 million revolutions
  • Resolution 25 or 16 ppr.
  • Up to IP55
  • TTL output with Schmitt trigger
DetailsProduct enquiry
Optoelectronic Manual Encoder MRS
Optoelectronic Manual Encoder MRS
The MRS panel encoder with up to IP65 has the most compact housing and the largest selection of electrical connections
  • Very compact design
  • Various electrical connections
  • Up to IP65
  • Haptic feedback through 16, 24 or 32 clicks
  • Resolution 4, 6 or 8 ppr.
  • With or without push button / detent
  • Open Collector, 5 V / 3.3 VSUP
DetailsProduct enquiry
Panel Encoder MRT
Optoelectronic manual encoder MRT
The MRT panel encoder has the longest push button travel path and is suitable for low-power applications
  • Longest stroke with 1.2 mm for push button
  • Lifespan > 1 million revolutions
  • Low power consumption <10 mA
  • Resolution 25 ppr.
  • Up to IP54
  • 5 V power supply
  • TTL output with Schmitt trigger
DetailsProduct enquiry
Optoelectronic Manual Encoder MRL
Optoelectronic Manual Encoder MRL
Compact 24.5 mm manual adjuster with plastic shaft, detent (with or without) and up to 25 imp/rev
  • Plastic shaft for better ESD protection
  • 20 or 25 pulses per revolution with 2 channels (A, B)
  • With or without detent
  • 5 V supply voltage
  • Numerous electrical connection variants
  • 24.5 mm x 18 mm metal housing with 8 mm housing depth
DetailsProduct enquiry
Optical Encoder SPM
Optical panel encoder SPM
Reliable panel encoder with increased torque provides superior feel and durability
  • Up to 1024 pulses / 360°
  • 2 channels + index
  • TTL or line driver output
  • Shaft side up to IP55M / IP66S
  • Installation depth 18.7 mm
  • Option connector with lock
  • Made in Germany
DetailsProduct enquiry
Optical Encoder SPE
Optoelectronic manual encoder SPE
Compact 22 mm encoder with up to 1000 rpm, selectable torque and selectable bearings
  • Plain bearing or ball bearing
  • Torque selection as setpoint encoder
  • 2 channels (A, B) with TTL or line driver output
  • Operating voltage 5 VDC
  • Radial connection contacts for Molex plugs
  • Housing depth only 11.7 mm
  • Cut-off frequency of 100 kHz
DetailsProduct enquiry
Optoelectronic Handwheel MHU
Optoelectronic Handwheel MHU
Robust Ø60mm handwheel with 100 detents and very small installation depth is perfect for fast setpoint setting.
  • High-quality Ø60 mm knob with 100 detents and crank
  • Low profile depth of only 9.7 mm
  • Resolution 25 or 100 ppr.
  • Optionally in IP64
  • NPN or line driver output
  • Compatible with MELDAS and FANUC
  • Screw terminals as electrical connection
  • 5V power supply
DetailsProduct enquiry
Optoelectronic Handwheel MHO
Optoelectronic Handwheel MHO
Premium handwheel in Ø80 mm housing with excellent haptics and 100 detents for very precise and tactile setpoint adjustment
  • Ø80 mm handwheel with crank
  • High quality solid construction
  • Metal ring / crank
  • Resolution 25 or 100 ppr., 100 detents
  • Protection class IP52
  • NPN transistor output
  • 5V power supply
  • Screw terminals
DetailsProduct enquiry

For manual setpoint adjustment, there are a number of specially optimized products. On the one hand, there are the widely used rotary potentiometers. You can choose between a completely pre-assembled set with a knob or a rotary potentiometer with end stops. On the other hand, we have encoders with a wide range of detents and pushbutton switches, as well as encoders with mechanical end stops.

The high quality haptic and the higher operating torque distinguish a panel encoder from a conventional encoder. Panel encoders offer an additional feature, the pushbutton switch, which can be used to acknowledge a setpoint. In particular, the higher operating torque prevents unintentional setpoint changes and is often adjusted to suit the application.

MEGATRON is your specialist in customizing products for specific applications. Our aim is to provide each customer with the best functional and economic result, even for relatively small quantities. With high delivery reliability and assured product quality, we focus on long-term partnerships and support you throughout the life of your application.
