Rigid light guide EPL5

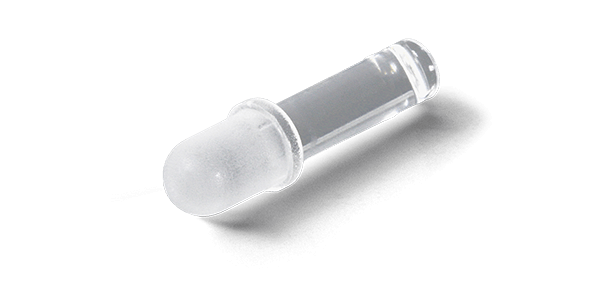

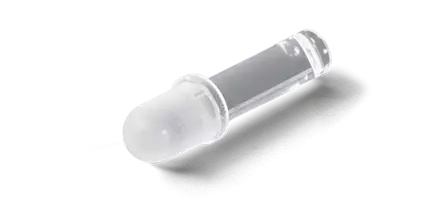

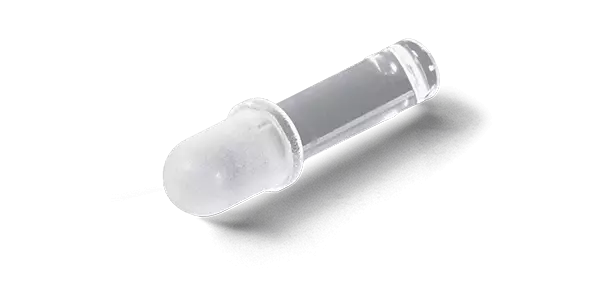

Rigid light pipe EPL5

Light guide for plug-in mounting from the rear of the panel. Transparent lens Ø5 mm in dome face design. Light pipe lengths from 3.2 to 38.1 mm

Description
Close
Product description: Rigid light pipe EPL5

Product variants

10 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
407365
EPL5 12,7 LICHTLEITER
408325
EPL5 25,4 LICHTLEITER
409129
EPL5 3,2 LICHTLEITER
409436
EPL5 8,9 LICHTLEITER
409735
EPL5 6,4 LICHTLEITER
409736
EPL5 9,5 LICHTLEITER
409737
EPL5 15,9 LICHTLEITER
409738
EPL5 19,0 LICHTLEITER
409739
EPL5 31,8 LICHTLEITER
409740
EPL5 38,1 LICHTLEITER
Material polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate
Colour transparent transparent transparent transparent transparent transparent transparent transparent transparent transparent
Ø Outer in mm 5,8 5,8 5,8 5,8 5,8 5,8 5,8 5,8 5,8 5,8
Number of optical fibers 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe
Ø Face / Lens in mm 5 5 5 5 5 5 5 5 5 5
Face/ Lens profil round and curved round and curved round and curved round and curved round and curved round and curved round and curved round and curved round and curved round and curved
LED included No No No No No No No No No No
Ø optical fiber in mm 4,9 4,9 4,9 4,9 4,9 4,9 4,9 4,9 4,9 4,9
Length x in mm 12,7 25,4 3,2 8,9 6,4 9,5 15,9 19 31,8 38,1
Assembly type panel press-fit rear panel press-fit rear panel press-fit rear panel press-fit rear panel press-fit rear panel press-fit rear panel press-fit rear panel press-fit rear panel press-fit rear panel press-fit rear
