Drawing rigid light guide EL951
Rigid light guide EL951

Rigid light pipe EL951

Light pipe for PCB plug-in mounting. Transparent lens Ø2,8 mm in flat face design. Heights from panel to light diversion from 5 to 15 mm and lengths from PCB to panel 14 to 20 mm

Description
Close

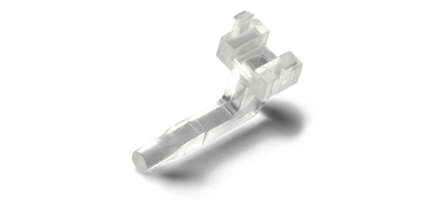

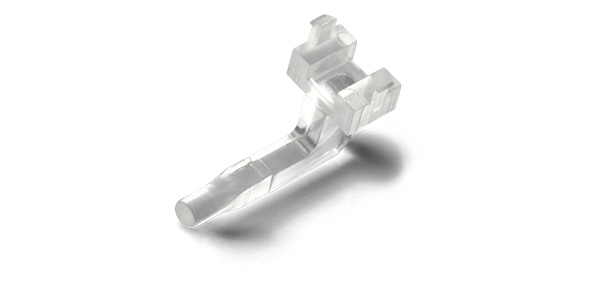

Product description: Rigid light pipe EL951

Product variants

9 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
409363
EL 9510 LICHTLEITER
409364
EL 9514 LICHTLEITER
410073
EL 9511 LICHTLEITER
410077
EL 9512 LICHTLEITER
410078
EL 9513 LICHTLEITER
410079
EL 9515 LICHTLEITER
410080
EL 9516 LICHTLEITER
410081
EL 9517 LICHTLEITER
410082
EL 9518 LICHTLEITER
Material polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate polycarbonate
Colour transparent transparent transparent transparent transparent transparent transparent transparent transparent
Number of optical fibers 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe 1 light pipe
Ø Face / Lens in mm 2,8 2,8 2,8 2,8 2,8 2,8 2,8 2,8 2,8
Face/ Lens profil round and flat round and flat round and flat round and flat round and flat round and flat round and flat round and flat round and flat
LED included No No No No No No No No No
Total length optical fiber in mm 16 19 19 22 16 22 16 19 22
Length lens to center bottom part in mm 14 17 17 20 14 20 14 17 20
Central line (height, X) in mm 5 10 5 5 10 10 15 15 15
Assembly type board mount board mount board mount board mount board mount board mount board mount board mount board mount
