Optoelectronic Handwheel MHU

Robust Ø60mm handwheel with 100 detents and very small installation depth is perfect for fast setpoint setting.

  • High-quality Ø60 mm knob with 100 detents and crank
  • Low profile depth of only 9.7 mm
  • Resolution 25 or 100 ppr.
  • Optionally in IP64
  • NPN or line driver output
  • Compatible with MELDAS and FANUC
  • Screw terminals as electrical connection
  • 5V power supply
incremental
Data sheet
Specifications
Sensor technology Optical Encoder
Effective electrical angle of rotation max. 360°
Functions / Features With adjustment knob and 100 detents
Resolution max. 100 ppr.
Output signal Incremental
Electrical connection Axial, Terminal connection
Protection class Up to IP64
Mounting Threaded holes
Housing depth min. 9.7 mm
Description
The MHU series handwheel is a real all-rounder, robust and with ... more
Description
Close
Product description: Optoelectronic Handwheel MHU

The MHU series handwheel is a real all-rounder, robust and with good haptics

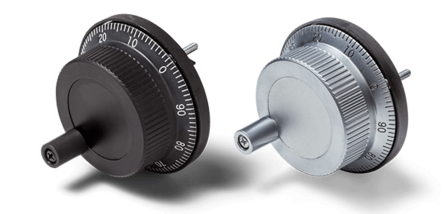

With a knob diameter of 60 mm, the handwheel allows precise and fast setpoint adjustment. The handwheel does not stop abruptly when the crank or knob is released during a fast turning movement, but runs for a short time. The mechanical detent is clearly visible on the knob in 100 dashes. The input device is available in black or silver, with a resolution of 25 or 100 pulses per revolution. An optional line driver ensures reliable signal transmission. The variety of electrical outputs makes the MHU series compatible with FANUC and MELDAS specifications.
The low installation depth of <10 mm allows the realization of manual input terminals in a flat design. The product design and IP64 rating ensure reliable operation even in dirty environments. The handwheel is preferably used to control machine tools such as CNC and milling machines, as well as test benches.
MEGATRON quality means that the haptic characteristics, such as detent torque and shaft backlash, show only minor changes even after many 100,000 operations.
