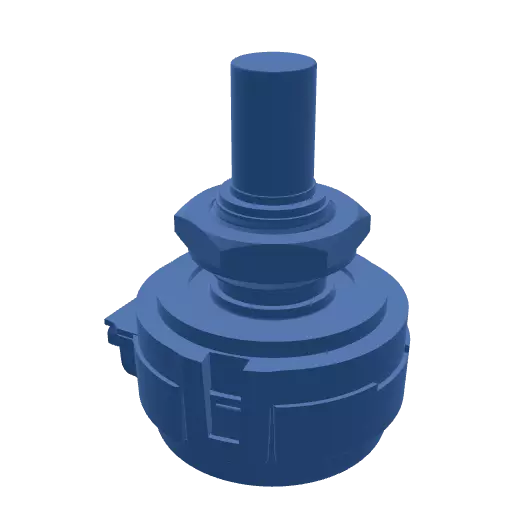

Optoelectronic manual encoder SPE
Panel encoder in Ø22mm housing with increased torque for reliable use in high temperature environments (maximum 100 °C)
- Compact design (Ø22 mm x 11 mm)
- For high temperatures, max. 100 °C
- Easy installation with bushing thread
- Up to 1000 pulses per revolution
- Sleeve bearing for manual control applications
- Time saving snap-in connector
Resolution | max. 1000 ppr. |
---|---|
Functions / Features | Without mech. stop |
Output signal | Incremental |
Protection class | IP40 |
Sensor technology | Optical Encoder |
Shaft diameter | 3.17 mm, 6.00 mm, 6.35 mm |
Mounting | Bushing |
Electrical connection | Radial, Connector |
Effective electrical angle of rotation | max. 360° |
Housing depth | min. 12 mm |
SPE panel encoders are available with very high resolution for particularly sensitive and exact setpoint specification
The panel encoder SPE is used as a manual device in the sleeve bearing version. The panel encoder is available in two versions with increased torque: One with a low torque of 0.2 Ncm and the other with an increased operating torque of 0.4 ±0.1 Ncm. For particularly sensitive and accurate setpoint specification, the encoder has very high resolution options from 100 to max. 1000 ppr. 1000 ppr. The operating temperature range of up to 100 °C ensures reliable operation even in high temperature environments. TTL or Line Driver interfaces are available for longer transmission distances. In addition, the pre-wired Molex connector allows easy mounting.
