Hand wheel MHO

Optoelectronic Handwheel MHO

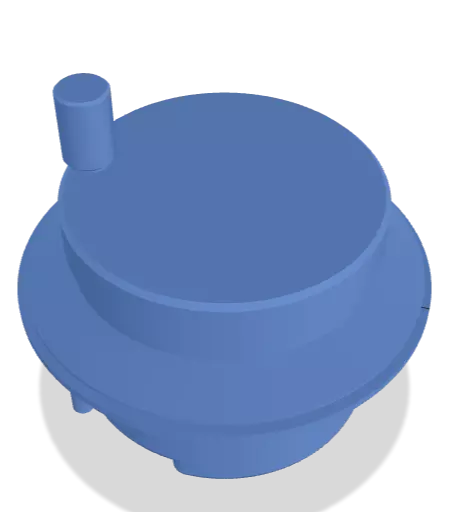

Premium handwheel in Ø80 mm housing with outstanding haptics and 100 detents for very precise and tactile setpoint specification

  • Premium handwheel incl. knob Ø80 mm and crank
  • High quality massive construction
  • Operating ring / crank made of metal
  • Resolution 25 or 100 ppr., 100 detents
  • Degree of protection IP52
  • NPN transistor output
  • 5V power supply
  • Screw terminals
Resolution max. 100 ppr.
Functions / Features With adjustment knob and 100 detents
Output signal Incremental
Protection class Up to IP52
Sensor technology Optical Encoder
Mounting Threaded holes
Electrical connection Axial, Terminal connection
Effective electrical angle of rotation max. 360°
Housing depth min. 27 mm
Description
Close
Product description: Optoelectronic Handwheel MHO

High quality and extremely solid construction - perfection in detail

If other handwheels are not able to emphasize the high quality of the application, the handwheel of the MHO series is the first choice. Are you looking for a visually and technically high-quality input solution for important setpoints, the premium handwheel MHO is ideally suited in central applications or environments. These can be, for example, command bridges on ships or control rooms in power plants as well as large, complex machines - wherever a particularly precise and tactile setpoint specification with high-quality design is valued. The heavy and massive construction of the MHO handwheel in Ø80 mm housing, with actuating ring and metal crank, underline the central character of an application.
The handwheel allows both precise and fast setpoint presetting. During a fast turning movement, the handwheel does not stop abruptly after releasing the crank or knob, but runs for a short time. The mechanical detent is clearly visible on the button in 100 steps. The input device is available in the colour silver with the resolution of 25 or 100 pulses per revolution.
