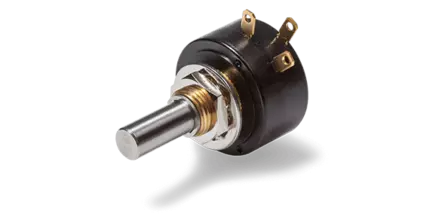

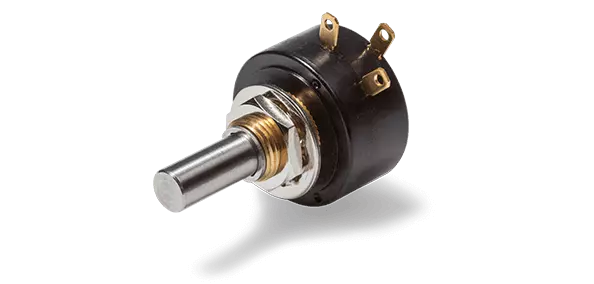

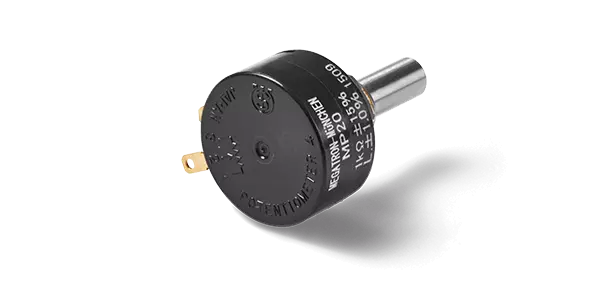

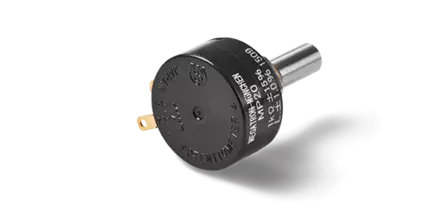

Conductive Plastic Potentiometer-MP20

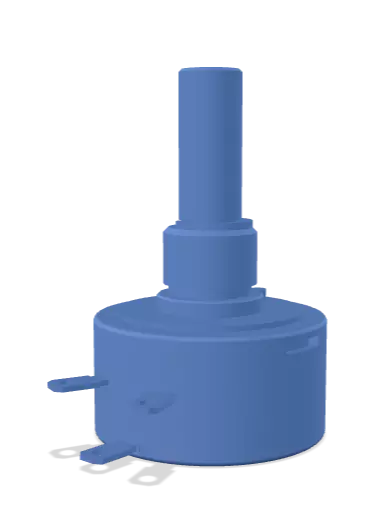

Rotary potentiometer MP21

Compact rotary potentiometer with long life and many options

  • Long life and accuracy
  • With mechanical end stop 320°
  • Compact sensor with low installation depth 12 mm
Resolution Nearly infinite
Functions / Features With mech. stop
Output signal Analog
Protection class IP65 (standard IP40)
Sensor technology Conductive Plastic Potentiometer
Shaft diameter 6.00 mm, 6.35 mm
Housing diameter 22 mm
Mounting Bushing
Electrical connection Radial, Solder contacts
Effective electrical angle of rotation max. 320°
Housing depth min. 12 mm
Description
Close
Product description: Rotary potentiometer MP21

The MP21 rotary potentiometers in 22 mm housing are for applications where precise long-lasting and compact sensors are important.

The rotary potentiometer MP21 with mechanical endstop is a multitalent which is adaptable for a wide range of applications and has a small built-in depth. The radial gold-plated soldering lugs ensure a low housing depth and are suitable for flat connectors (2.8 mm to DIN 46247 part 3). In addition, the sensors are convincing due to their accuracy and long life due to the high-quality Comolded conductive plastic technology.

  • Long life and accuracy
  • With mechanical end stop 320°
  • Compact sensor with low installation depth 12 mm
  • A rotary potentiometer with many options

Available Options:

  • Front shaft sealing
  • Front shaft adjustment
  • Shaft diameter 6.00 mm
  • Screwdriver slot
  • Center tap
  • Improved linearity
  • Improved resistance tolerance
  • Back shaft

We offer many adaptations on request: Tandem- or multi ganged potentiometers, sealed housing case, special electrical and mechanical angles of rotation, and special resistance and linearity tolerances. Furthermore we can mount gear wheels or attach cable assemblies with or without connectors and much more. Please use our request form and describe your application, so we can determine the optimal product for your design-in.
