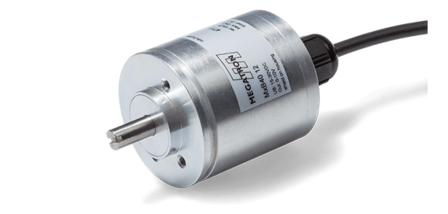

Hall-Effect Multiturn Absolute Encoder MAB40APM

Completely sealed programmable multiturn encoder with analogue output and ball bearings

Product is no longer available. Successor product HTx36

Click here for series HTx36

  • Start and end points easily set in field via dry contacts 10° to 200 x 360°
  • Ø40 mm housing with servo mount flange
  • 12 bit resolution
  • IP67 protection class
  • Analogue output: 0…5 V, 0…10 V, 4…20 mA
  • Supply voltage 8…30 V
  • Ball bearings
Specifications
Sensor technology Hall Effect Encoder
Effective electrical angle of rotation 0...10° up to 0...72000°
Functions / Features Metal housing, Without mech. stop
Resolution Absolute 12 bit
Output signal Analogue
Electrical connection Cable, Axial
Protection class Up to IP67
Mounting Threaded holes, Servo flange
Shaft diameter 6.00 mm
Housing diameter 40 mm
Housing depth min. 42.4 mm
Description
The multiturn encoder MAB40APM allows a flexible and exact ... more
Description
Close
Product description: Hall-Effect Multiturn Absolute Encoder MAB40APM

The multiturn encoder MAB40APM allows a flexible and exact adjusting of the start and end point as well as the direction of the signal by the customer. The counter state of up to 200 turns is stored in a nonvolatile memory. During power off it is possible to turn the shaft ±179° without loss of the position value.

The MAB40APM is factory programmed to an electrically effective angle of rotation of 10 turns = 3600°. On request, other user-defined electrically effective rotation angles can be ordered as an option or programmed by the user himself. For quick, safe and easy programming of the MAB40APM by the user, MEGATRON recommends the optionally available MEGATRON Programmer.
The programmer is needed only once. It can be programmed with this any number of MAB40APM . The user-supported programming is also possible by creating an external circuit. This external circuit is described in the Programming Guide.
