Hall effect Multiturn Rotary Encoder ETx25

Programmable multiturn Hall effect angle encoder ETA25PM

Customer programmable multiturn rotary encoder up to 72000° in Ø25 mm housing, analogue output and IP66 - for various angles of rotation

  • Only one multiturn rotary encoder device for various demands
  • Angle range and sense of rotation can be parameterized on site
  • High durability
  • Short delivery time
  • Engineered and Made in Germany
Sensor technology Hall Effect Encoder
Effective electrical angle of rotation max. 72000°
Functions / Features Customer programmable, Without mech. stop
Resolution Absolute 12 bit
Output signal Analog
Electrical connection Radial, Cable, Terminal connection
Protection class Up to IP66
Mounting Bushing
Shaft diameter 6,00 mm
Housing diameter 25 mm
Housing depth min. 18,8 mm
Description
Close

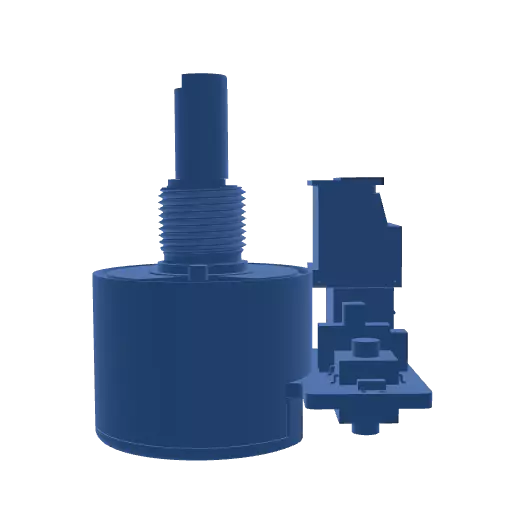

Product description: Programmable multiturn Hall effect angle encoder ETA25PM

The programmable multiturn sensor ETA25PM can be parameterized by the customer on site to the desired angular measuring range and sense of rotation up to 10.000 times.

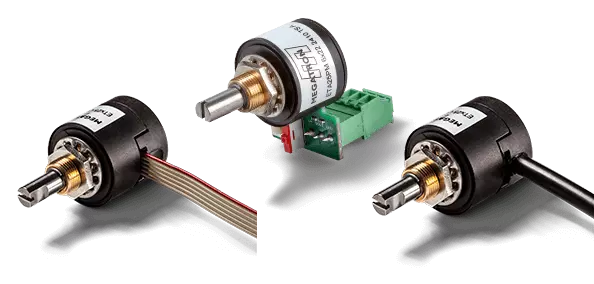

Only one device for different angles of rotation, sense of rotations direct parametrizable on site. These advantages enable the user the possibilities to set up the ETA25PM multiturn encoder to the requirements of the application on site. Only one angle encoder device for different requirements is needed, which can be parameterized almost as often as required. The ETA25PM measures angles from 0…10° up to 0…72000° (absolute). The ETA25PM is available until protection class IP66 and has a long durability of more than 100 million shaft revolutions. The compact sensor in the 25 mm housing with Ø6 mm or Ø6.35 mm shaft diameter is e.g. optimally suited for use in drive units as position feedback. Customized adaptations of the shaft geometry, cable assembly or connections can be realized on request. A variant of the ETA25PM with integrated buttons for angle programming and sense of rotation is available on request.

The ETA25PM is factory programmed to an electrically effective angle of rotation of 10 turns = 3600°. On request, other user-defined electrically effective rotation angles can be ordered as an option or programmed by the user himself. For quick, safe and easy programming of the ETA25PM by the user, MEGATRON recommends the optionally available MEGATRON Programmer.
The programmer is needed only once. It can be programmed with this any number of ETA25PM. The user-supported programming is also possible by creating an external circuit. This external circuit is described in the Programming Guide

For applications where a singleturn encoder is required the ETA25PS is available.

Application example rotary encoders for drives

Application video rotary encoders for drives
