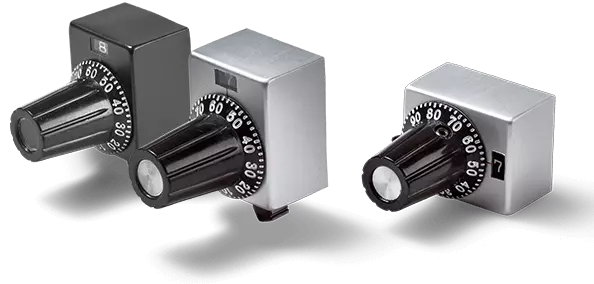

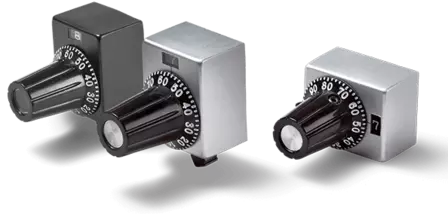

Adjustment knob MF

Miniature control knob with 50 dashes and 10 revolution counter in 18.5 x 15 mm case with locking mechanism

  • Miniature knob with 50 dashes and 10-turn counter
  • With locking mechanism and flexible coupling
  • Silver or black housing
  • MF for vertical and MFA for horizontal mounting
  • For 3…4 mm shafts
Data sheet
Description
This very small adjustment knob has been specially designed for ... more
Description
Close
Product description: Adjustment knob MF

This very small adjustment knob has been specially designed for 1/2" miniature potentiometers used on narrow chassis. It can be mounted in a space-saving manner, and its attractive design ensures a harmonious front panel appearance. The MF connects the potentiometer shafts (3 - 3.17 - 4 mm Ø) via a flexible, integral cardan coupling that ensures constant torque. Despite its small size, the set values are easy to read. An effective lock prevents unintentional rotation. The round scale shows the angle change in 2/100 turns, the number wheel shows full turns.
