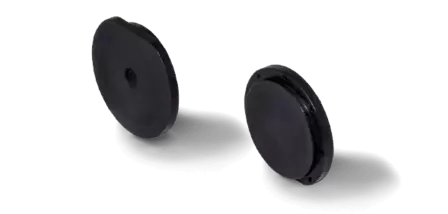

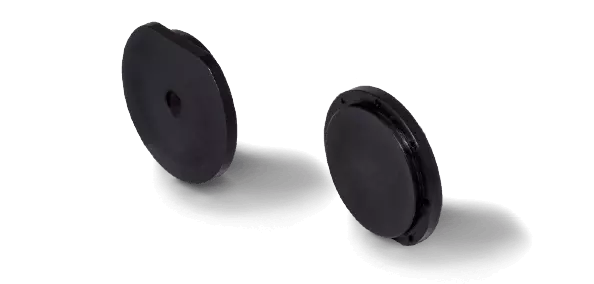

Magnet MAG18-with-flattening

Magnet MAG18

Polymer-bonded encoder magnet, perfect for Hall encoders, for zero-point alignment during installation.

  • Polymer-bonded magnet
  • Perfect for Hall Effect kit encoders
  • For example, for MEGATRON series HTx25K
  • Flattening for alignment of the magnetic field in the application
  • Diameter 18 mm
Description
Close
Product description: Magnet MAG18

The polymer-bonded magnets MAG18 allow the magnetic field to be aligned relative to a magnetic kit coder. This means that the zero position for absolute value encoders and the position of the Z pulse for incremental encoders in the application can already be defined during assembly. Thus, there is no need to adjust the encoder or the magnet during installation.
