Programmer for magnetic sensors PRO

Programmer PRO for magnetic sensors

The programmer offers the easy, fast and parameterization of MEGATRON`s magnetic rotary encoders

  • Plug & Play programmer for parameterization of Hall Single-/Multiturn rotary encoders
  • Allows the parameterization of one rotary encoder 10,000 times
Description
Close
Product description: Programmer PRO for magnetic sensors

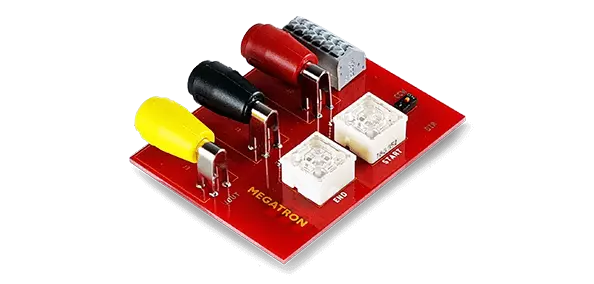

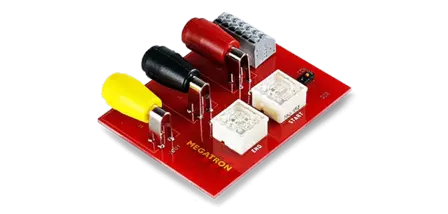

The programmer offers the easy, fast and parameterization of MEGATRON's (e.g. ETA25PM, HTA36PM, HTA25PM) rotary encoders. With the programmer, the rotary encoder can be parameterized exact to the requirements of the application. The programmer offers for a fast electrical connection of the rotary encoder a cable terminal with push buttons, which is useful in particular in a series parameterization.

  • 3 lateral positioned Ø4 mm sockets (for banana plugs) for power supply and output signal
  • 6 cable terminals on top with push buttons for a fast and electrical connection of the rotary encoder
  • 2 buttons (start/stop) for parameterizing the effective electrical angle of rotation
  • DIP switch for setting the sense of rotation CW or CCW
