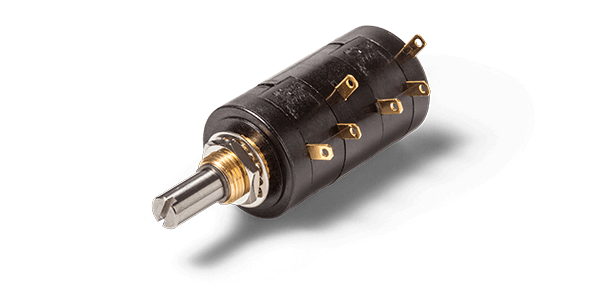

Multiturn-Wirewound-Potentiometer AL17/19

Multiturn Hybrid Potentiometer HH17/19

Economical, high-resolution and long-lasting multiturn potentiometer with very low signal noise in Ø22 mm housing

  • Economical and durable multiturn potentiometer
  • High resolution - no winding jumps thanks to hybrid technology
  • Simplified mounting due to connector version
  • Suitable for a wide range of applications thanks to numerous options
  • Version HHR17/19 with integrated slipping clutch
Resolution Nearly infinite
Functions / Features With mech. stop, Opt. multiganged/ tandem, Opt. rear shaft
Output signal Analogue
Protection class IP40 (optional IP65)
Sensor technology Hybrid Potentiometer
Shaft diameter 6.00 mm, 6.35 mm
Housing diameter 22 mm
Mounting Bushing
Electrical connection Radial, Solder contacts, Terminal connection
Effective electrical angle of rotation max. 3600°
Housing depth min. 19 mm

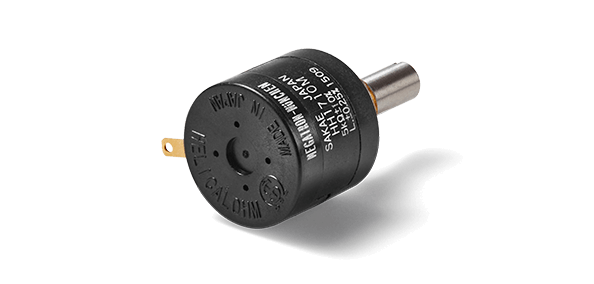

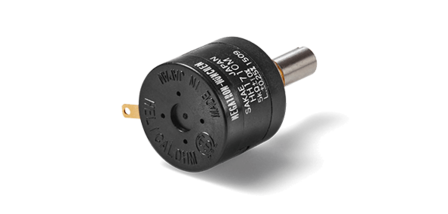

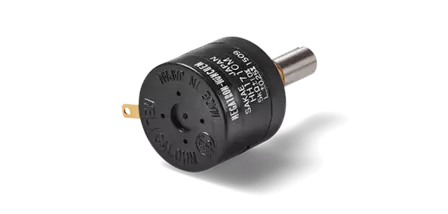

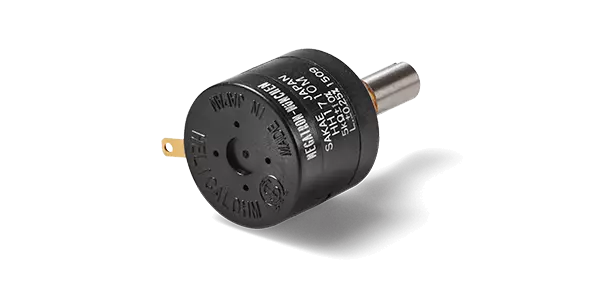

Product description: Multiturn Hybrid Potentiometer HH17/19

The HH17/19 potentiometers in Ø22 mm housing are suitable for applications where a long lifespan and very high-resolution multiturn potentiometer is important.

The high-resolution precision potentiometers of the HH17/19 series have a wire-wound resistor element, which is finished with a conductive plastic layer. Thus, the so-called winding jumps are omitted and the resolution is almost infinite. Due to the smooth surface of the resistance element, the hybrid potentiometer has a significantly longer life and qualifies it as a position feedback in closed loop control circuits. The shaft diameters is Ø6,35 / Ø6.00 mm (HH17 / HH19) and is equipped with a screwdriver slot. In addition, an optional integrated slipping clutch protects the potentiometer from damage by overrunning the end stops and facilitates the zero point adjustment. The potentiometer is available in a 3, 5 or 10 turn version. The radial gold-plated connection pins are suitable for flat connectors (2.8 mm according to DIN 46247 part 3) and the connector version simplifies the mounting.

  • Very high-resolution and long-lasting due to hybrid technology
  • Very clean signal - no winding jumps thanks to hybrid technology
  • Simplified installation due to connector version
  • Version HHR17/19 with integrated slipping clutch


  • Front shaft sealing
  • Front shaft adjustment
  • Improved linearity
  • Improved resistance tolerance
  • Rear shaft and shaft geometry
  • Center tap

We offer many adaptations on request: Multi ganged potentiometers, sealed housing case, special electrical and mechanical angles of rotation, and special resistance and linearity tolerances. Furthermore, we can mount gear wheels or attach cable assemblies with or without connectors and much more. Please use our request form and describe your application, so we can determine the optimal product for your design-in.
