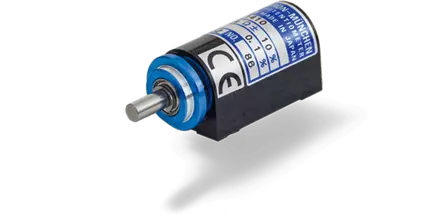

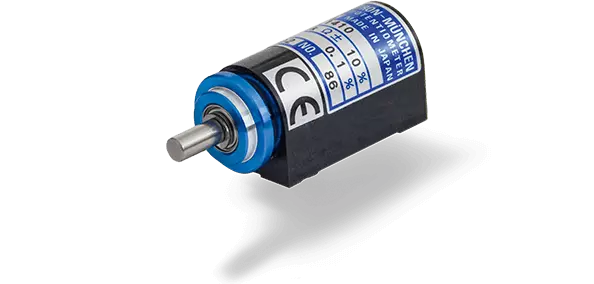

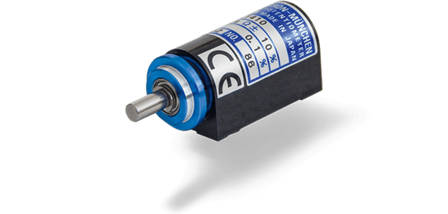

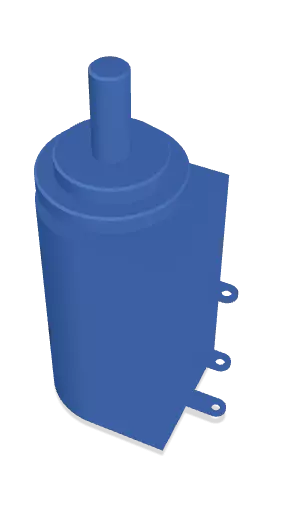

Multiturn-Hybrid-Potentiometer AL14

Very compact and accurate multiturn potentiometer with long life span in 13 mm housing


Sensor technology: Hybrid Potentiometer
Effective electrical angle of rotation: max. 3600°
Functions / Features: With mech. stop
Resolution: Nearly infinite
Output signal: Analog
Mounting: Servo flange, opt. PCB mounting
Shaft diameter: 3,17 mm
Housing diameter: 13 mm
Housing depth: min. 28,2 mm
Electrical connection: Radial, Solder contacts
Protection class: IP40

The potentiometers of AL14 series are for applications where a very accurate and compact multiturn potentiometer with only Ø13 mm housing and servo flange is required.

The precision potentiometers of the AL14 series have a very compact design. The high-quality hybrid technology and ball-bearing guarantee a life span of more than 10 million shaft revolutions. Due to the very good accuracy, the multi-turn potentiometer is used, for example, in measuring machines or in semiconductor manufacturing.

  • Very precise sensor
  • Long life span
  • Compact construction

Options:

  • Improved linearity
  • Improved resistance tolerance
  • Front shaft adaptation

We offer many adaptations on request: Sealed housing case, special electrical and mechanical angles of rotation, and special resistance and linearity tolerances. Furthermore we can mount gear wheels or attach cable assemblies with or without connectors and much more. Please use our request form and describe your application, so we can determine the optimal product for your design-in.
