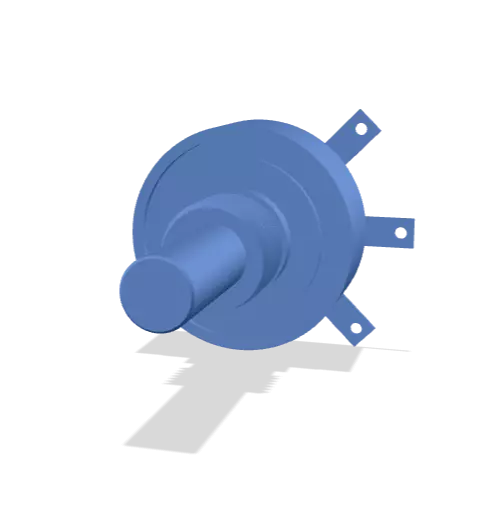

Wirewound potentiometer MUP

Compact, economical and universal potentiometer in Ø22 mm housing with very low installation depth

  • Economical and universal wirewound potentiometer
  • Compact with only 8.6 mm housing depth
  • Mechanical end stop variants (320° or 270°)
  • Power and space-saving in compact mobile applications
  • Optional tandem version
Data sheet
Specifications
Resolution Depends on resistance value
Functions / Features With mech. stop, Opt. multiganged/ tandem, Opt. rear shaft
Output signal Analogue
Protection class IP40 (optional IP65)
Sensor technology Wirewound Potentiometer
Shaft diameter 6.00 mm
Housing diameter 22 mm
Mounting Bushing
Electrical connection Radial, Solder contacts
Effective electrical angle of rotation max. 270°, max. 320°
Housing depth min. 8.6 mm
Description
The MUP potentiometers in 22 mm housing are suitable for ... more
Description
Close
Product description: Wirewound potentiometer MUP

The MUP potentiometers in 22 mm housing are suitable for applications in which a compact sensor with good quality and reasonable price is important.

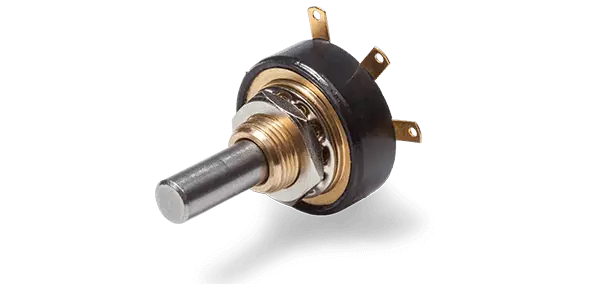

The precision potentiometers of the series MUP are space-saving, economical and universal wirewound potentiometers. Models with electrical rotation angle of 320° (MUP1300 / 1350) and 270° (MUP1307) are available.

  • Economical and universal potentiometer
  • Compact with only 8.6 mm housing depth
  • With mechanical end stop (320° / 270°)
  • Power-saving in compact mobile applications
  • A potentiometer with many options

Options:

  • Front shaft sealing
  • Front shaft adjustment
  • Back shaft
  • Center tap
  • Screwdriver slot
  • Tandem Version

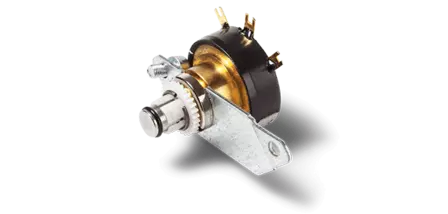

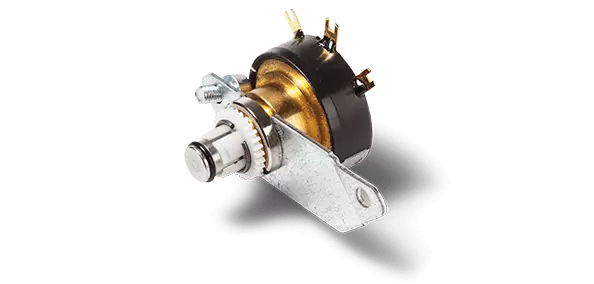

We offer many adaptations on request: Multi ganged potentiometers, with increased torque for manual operation, sealed housing case, special electrical and mechanical angles of rotation, and special resistance and linearity tolerances. Furthermore, we can mount gear wheels or attach cable assemblies with or without connectors and much more. Please use our request form and describe your application, so we can determine the optimal product for your design-in.
