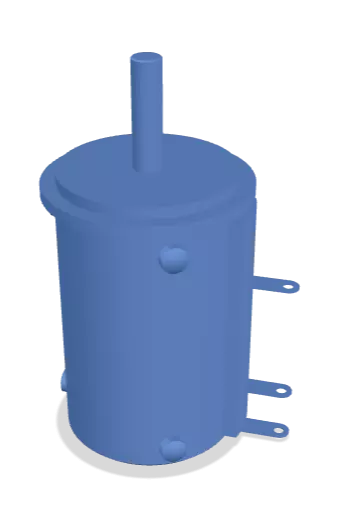

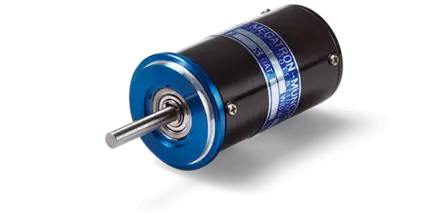

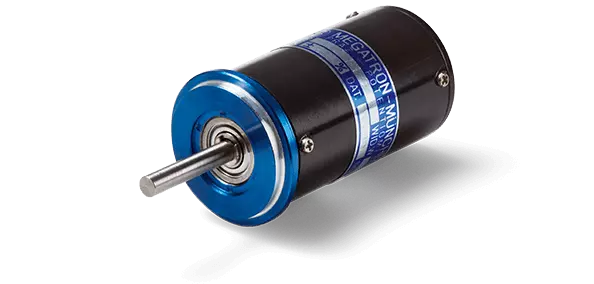

Multiturn wirewound potentiometer ALS25
Potentiometers with outstanding linearity and resolution for measuring ranges from 3 to 20 revolutions in Ø25 mm servo flange housing
- Up to 20 turns in a compact housing
- Servo flange for precise mounting
- Limit switches (CW, CCW) available on request
- Optional rear shaft
- Optional tandem version
Resolution | Depends on resistance value |
---|---|
Functions / Features | With mech. stop, Opt. limit switch, Opt. multiganged/ tandem, Opt. rear shaft |
Output signal | Analogue |
Protection class | IP40 |
Sensor technology | Wirewound Potentiometer |
Shaft diameter | 4.00 mm |
Housing diameter | 25 mm |
Mounting | Servo flange |
Electrical connection | Radial, Solder contacts |
Effective electrical angle of rotation | Up to 7200° |
Housing depth | min. 30.5 mm |
The ALS25 series potentiometers are used as multi-turn sensors with outstanding linearity and resolution for measuring ranges from 3 to 20 revolutions
Despite its compact body diameter of just 25 mm, the potentiometer offers an angular range of up to 20 turns and exceptional additional options such as galvanically isolated limit switches for the end positions and up to 5 taps on the resistance element. A tandem version is available for applications requiring redundant and/or galvanically isolated signals.
