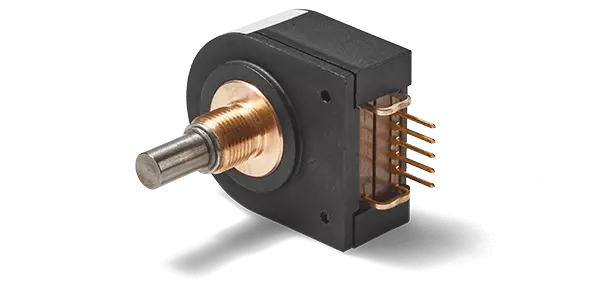

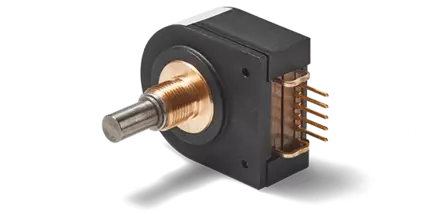

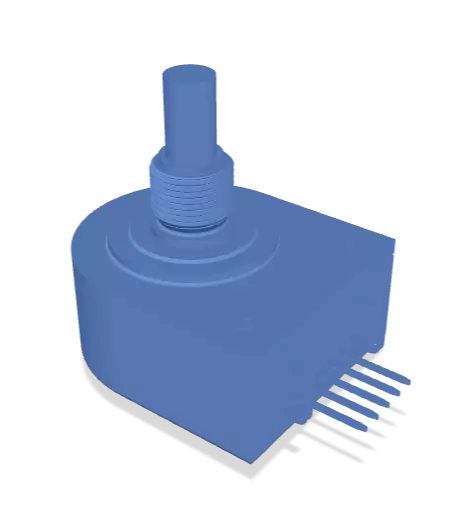

Optical incremental encoder SPM

Reliable optical incremental encoders with increased (SPM) and reduced torque (SPNTM) with good adaptability to the application

  • Up to 1024 pulses / 360° (max. 5000 ppr)
  • 2 channels + index
  • TTL or line driver output
  • Shaft side up to IP55M / IP66S
  • Installation depth 18.7 mm
  • Option connector with lock
  • Made in Germany
incrementalDifferential
Data sheet
Specifications
Resolution 50...1024 ppr. (max. up to 5000 ppr.)
Functions / Features Without mech. stop
Output signal Incremental
Protection class Up to IP55
Sensor technology Optical Encoder
Shaft diameter 6.00 mm, 6.35 mm
Housing diameter 35 mm / 30 mm
Mounting Bushing
Electrical connection Radial, Solder contacts, Terminal connection
Effective electrical angle of rotation max. 360°
Housing depth 18.7 mm
Description
The optical incremental encoders SPM (increased torque) and ... more
Description
Close
Product description: Optical incremental encoder SPM

The optical incremental encoders SPM (increased torque) and SPNTM (reduced torque) are ideal for applications that require high durability and adaptability of the sensor.

The optical incremental encoders of the series SPM (increased torque, in IP55 on shaft side) and SPNTM (reduced torque, in IP40 on the shaft side) are characterized by their reliability and long lifespan of more than 100 million shaft movements. The sensor with Ø6 mm or Ø6,35 mm (1/4 ") shaft is fixed by means of central thread. Depending on the version, a resolution of 50…1024 pulses per revolution (360°) is available as TTL or Line Driver output signal. Upon request, further resolutions such as e.g. 1250/2000/2048/2500/4000/4096 and 5000 ppr are realized. The incremental encoder detects angles contactless and has a high-quality metal sleeve bearing. The SPM is particularly an encoder for a precise manual input of values. A typical application of the SPNTM is the measurement of values. A comfortable choice of electrical interfaces as standard, such as soldering / plug-in contacts (TTL), optional connector with lock (TTL or Linedriver), complete the profile.
