Optical Encoder SPE

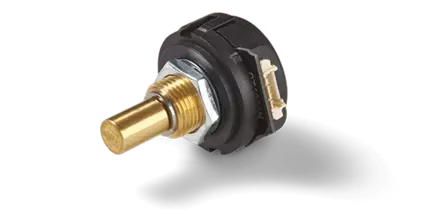

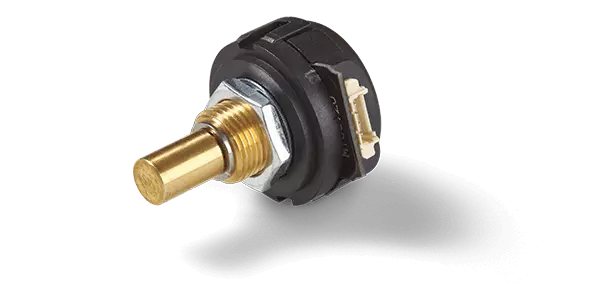

Space-saving optical encoder in Ø22 mm housing with up to 1000 ppr. and ball bearing for maximum durability

  • Compact design (Ø22 mm x 11 mm)
  • Up to 1000 pulses per revolution
  • Up to 15,000 rpm
  • With ball bearings for maximum lifespan
  • With sleeve bearing for applications as manual control
  • Simple installation with bushing thread
incrementalDifferential
Data sheet
Specifications
Sensor technology Optical Encoder
Effective electrical angle of rotation max. 360°
Functions / Features Without mech. stop
Resolution 100 to 1000 ppr.
Output signal Incremental
Electrical connection Connector, Radial
Protection class IP40
Mounting Bushing
Shaft diameter 6.00 mm, 6.35 mm, 3.17 mm
Housing diameter 22 mm
Housing depth min. 11.73 mm
Description
The compact optical encoder SPE is ideal for applications, which ... more
Description
Close
Product description: Optical Encoder SPE

The compact optical encoder SPE is ideal for applications, which requiring maximum durability at max. 15,000 rpm and with up to 1000 ppr.

The compact SPE incremental encoder with ball bearing has the highest lifespan characteristics with max. operating speed of up to 15,000 rpm. Besides the use as position feedback with ball bearing, the encoder series SPE is also suitable as manual interface with sleeve bearing (maximum 100 rpm) and has optimal haptic appearance during operation (with increased torque). Interfaces are TTL or Line Driver for longer transmission distances.  In addition, the ready-made Molex plug-in connection enables convenient mounting.
