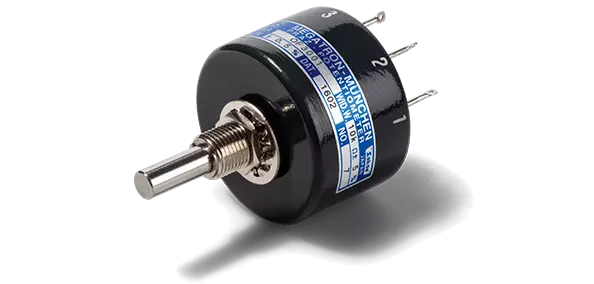

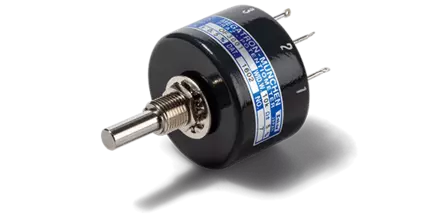

Singleturn wirewound oil-filled potentiometer OF30
Singleturn wirewound oil-filled potentiometer OF30

Singleturn wirewound oil-filled potentiometer OF30

Oil-filled wirewound potentiometer in Ø32 mm housing with or without mechanical stop

  • Oil-filled potentiometer
  • Optional center tap
  • Optional with mech. stop @300°
Data sheet
Compare
Remember
Specifications
Sensor technology Wirewound Potentiometer
Effective electrical angle of rotation max. 280°
Functions / Features With mech. stop, Oil filled, Metal housing, Without mech. stop
Resolution Depends on resistance value
Output signal Analogue
Electrical connection Solder contacts, Axial
Protection class IP65 standard
Mounting Bushing
Shaft diameter 5.00 mm, 3.17 mm
Housing diameter 32 mm
Housing depth 21 mm
Description
The potentiometers OF30 are filled with oil. The oil has a ... more
Description
Close
Product description: Singleturn wirewound oil-filled potentiometer OF30

The potentiometers OF30 are filled with oil. The oil has a heat-dissipating function, cleans the resistance element of abrasion and protects it from moisture and aggressive substances.
