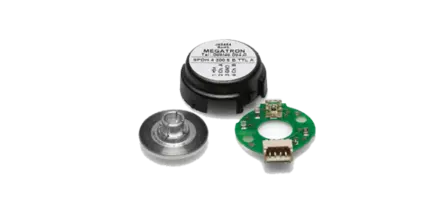

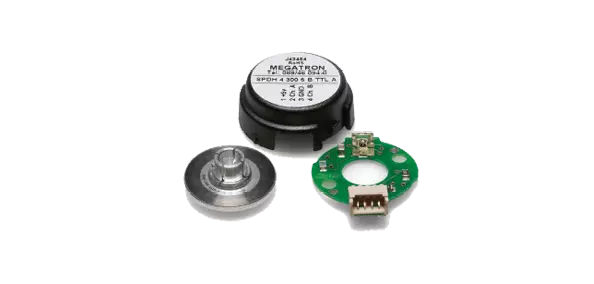

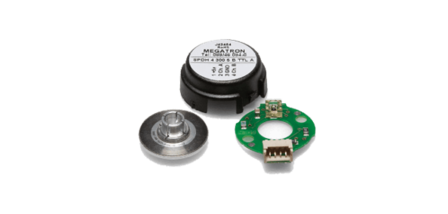

Optoelectronic Kit-Encoder Series SPDH

Flat and inexpensive kit encoder

Product is no longer available. Successor product SPEH

To the series SPEH

Specifications
Sensor technology Optical Encoder
Effective electrical angle of rotation max. 360°
Functions / Features Without mech. stop
Resolution Up to 360 ppr.
Output signal Incremental
Protection class IP40
Mounting Hub
Description
Flat design 11,5 mm With slip-on disc Kit mounting  ... more
Description
Close
Product description: Optoelectronic Kit-Encoder Series SPDH
  • Flat design 11,5 mm
  • With slip-on disc
  • Kit mounting
  • Resolution up to 360 ppr
  • Rotational speed up to 36,000 rpm
  • Option: through hole
