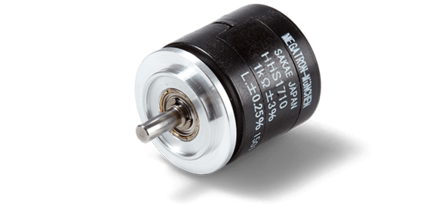

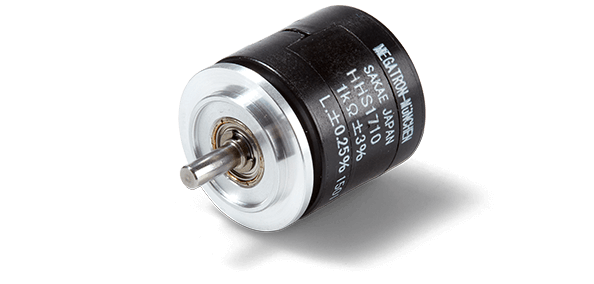

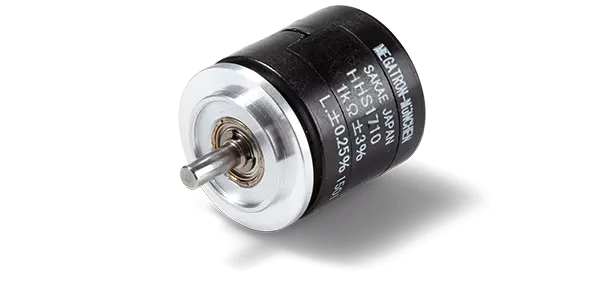

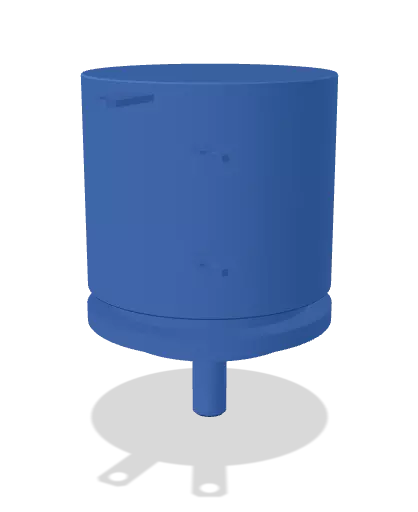

Multiturn hybrid potentiometer HHS17

High-resolution and long-lasting multiturn potentiometer with very low signal noise in 22 mm servo flange housing

  • Very high-resolution, long-lasting and clean signal
  • No winding jumps due to hybrid technology
  • Optional version HHS17xxR with slipping clutch
  • With many options
Data sheet
Specifications
Sensor technology Hybrid Potentiometer
Effective electrical angle of rotation max. 3600°
Functions / Features Opt. rear shaft, With mech. stop, Opt. multiganged/ tandem
Resolution Nearly infinite
Output signal Analogue
Electrical connection Radial, Solder contacts
Protection class IP40
Mounting Servo flange
Shaft diameter 3.17 mm
Housing diameter 22 mm
Housing depth min. 22 mm
Description
The HHS17 potentiometers in Ø22 mm housing are suitable for ... more
Description
Close
Product description: Multiturn hybrid potentiometer HHS17

The HHS17 potentiometers in Ø22 mm housing are suitable for applications where long lifespan and very high-resolution multiturn potentiometer with servo flange is important

The high-resolution precision potentiometers of the HHS17 series have a wire-wound resistor element, which is finished with a conductive plastic layer. Thus, the so-called winding jumps are omitted and the resolution is almost infinite. Due to the smooth surface of the resistance element, the hybrid potentiometer has a significantly longer life span and qualifies it as a position feedback in closed loop control circuits. In addition, an optional integrated slipping clutch protects the potentiometer from damage by overrunning the end stops and facilitates the zero point adjustment. The potentiometer is available in a 3, 5 or 10 turn version. The radial gold-plated connection pins are suitable for flat connectors (2.8 mm according to DIN 46247 part 3).
