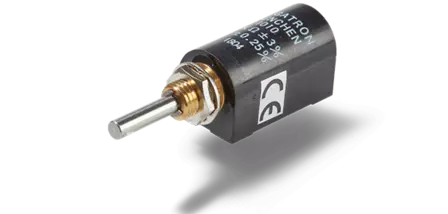

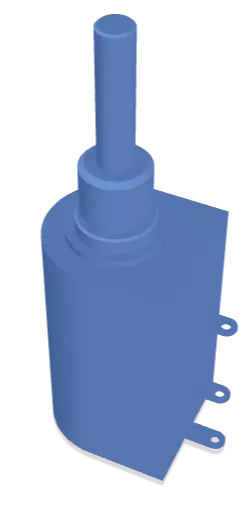

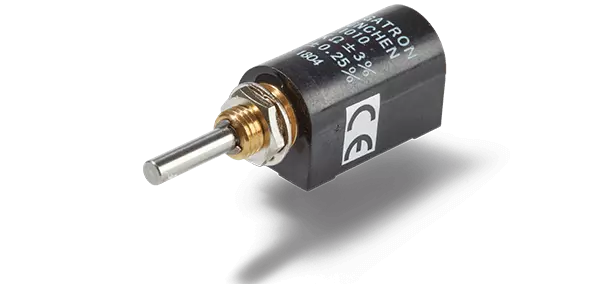

Miniature multiturn hybrid potentiometer AL11

Smallest hybrid potentiometer of the world in Ø13 mm housing with long lifespan and low signal noise

  • Miniaturized and precise 10-turn potentiometer
  • Versions for direct PCB mounting
  • ≥ 10 million movements
  • Low signal noise thanks to hybrid technology
Data sheet
Specifications
Resolution Nearly infinite
Functions / Features With mech. stop
Output signal Analogue
Protection class IP40 (optional IP65)
Sensor technology Hybrid Potentiometer
Shaft diameter 3.17 mm
Housing diameter 13 mm
Mounting Bushing, opt. PCB mounting
Electrical connection Radial, Solder contacts
Effective electrical angle of rotation max. 3600°
Housing depth min. 25.5 mm
Description
The multiturn potentiometers of the AL11 series in Ø13 mm ... more
Description
Close
Product description: Miniature multiturn hybrid potentiometer AL11

The multiturn potentiometers of the AL11 series in Ø13 mm housing are suitable for applications that require a miniaturized sensor with long lifespan and low signal noise.
