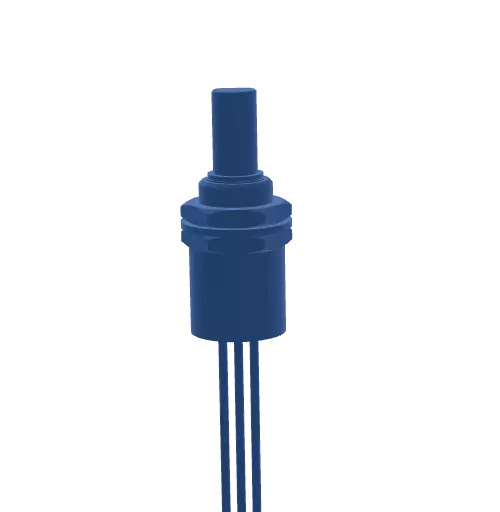

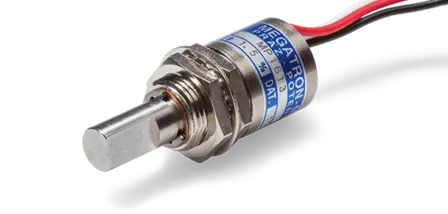

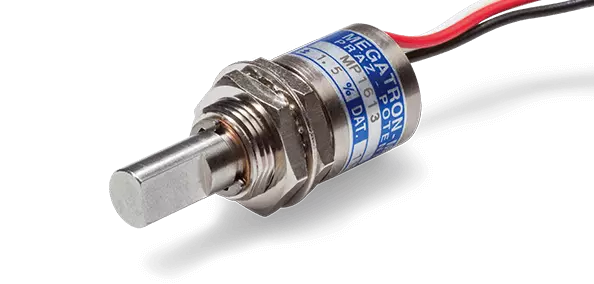

Magnetic rotary encoder (Hall effect) MP1613

Miniature encoder with Hall sensor, minimal power consumption and wide operating temperature range

The MP1613 series uses the Hall effect for wear-free measured value acquisition and is characterised by an exceptionally low current consumption of ≤ 7 mA for Hall effect encoders. With an operating temperature range of -40 °C to +105 °C, the MP1613 is designed for applications that require reliable operation under large temperature fluctuations.

Thanks to its compact design and minimal power requirement, the MP1613 is particularly suitable for battery-operated or mobile applications such as thrust controllers or other control devices that require precise position measurement with an electrical angle of rotation of ±45° (=90°).

The signal is output via a voltage output VSUP (0.1...0.9 x VSUP). Mechanical mounting is via a bushing mounting with fixing nut and toothed disc, which enables fast and secure integration.

Options:

• Electrically effective angle of rotation: ±45° (=90°), optionally customised in 5° increments
• Signal direction of rotation: CW (clockwise) or CCW (anti-clockwise)
• Electrical connection: Single wires (approx. 150 mm, other lengths optional)
