Wirewound-Potentiometer-Multiturn SMT

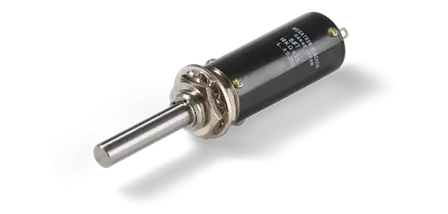

Multiturn-Wirewound Potentiometer SMT

The Smallest 10-turn potentiometer in the world

  • The Smallest 10-turn potentiometer in the world
  • Only Ø10.5 mm
  • 5 or 10 turn versions
Sensor technology Wirewound Potentiometer
Effective electrical angle of rotation max. 3600°
Functions / Features Opt. rear shaft, With mech. stop
Resolution Depends on resistance value
Output signal Analog
Electrical connection Solder contacts, Axial
Protection class IP40
Mounting Bushing
Shaft diameter 4,00 mm
Housing diameter 10 mm
Housing depth min. 19,2 mm
Description
Close
Product description: Multiturn-Wirewound Potentiometer SMT

The SMT potentiometers in 10,5 mm housing are suitable for applications where a miniaturized and precise multiturn potentiometer is important.

The precision potentiometers of the series SMT are the smallest multiturn wirewound potentiometers in the world. The potentiometer is as a 5 or 10 turn versions and optionally with rear shaft available. A potentiometer with many options.

  • The Smallest 10-turn potentiometer in the world
  • Only Ø10.5 mm
  • 5 or 10 turn versions

Options:

  • Front shaft adjustment
  • Rear shaft and shaft geometry
  • Screwdriver slot
  • Improved linearity
  • Improved resistance tolerance

We offer many adaptations on request:
Sealed housing case, special electrical angles of rotation, and special resistance and linearity tolerances. Furthermore, we can mount gear wheels or attach cable assemblies with or without connectors and much more. Please use our request form and describe your application, so we can determine the optimal product for your design-in.
