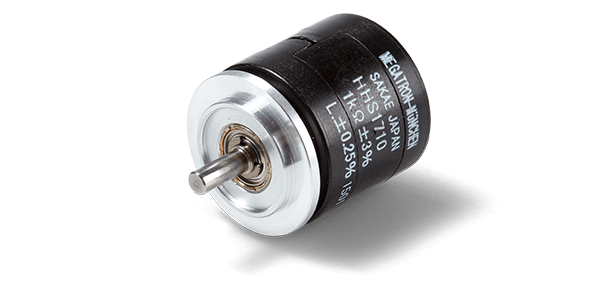

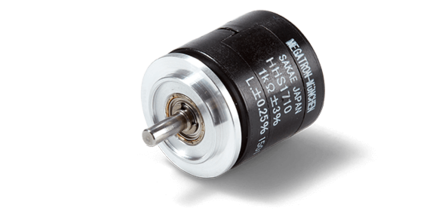

Multiturn Wirewound Potentiometer HS17

Multiturn potentiometer with optimum price-performance balance for standard applications

The HS17 series was developed to offer an economical solution for multiturn potentiometers with a servo flange. With a Ø22 mm plastic housing and up to 10 turns, it is ideal for standard applications where precision and reliability are required.

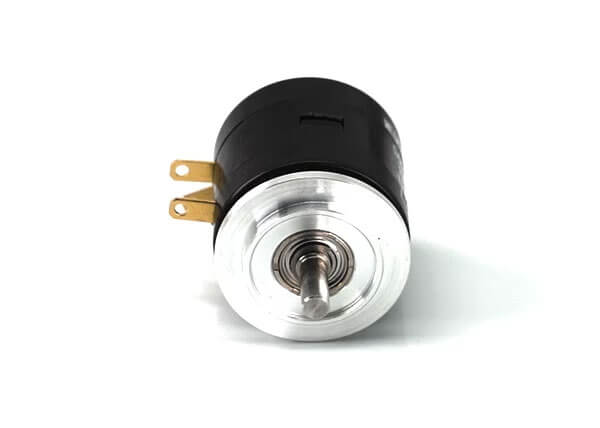

Thanks to the optional integrated slipping clutch, the potentiometer is also protected against mechanical overload. The radially arranged, gold-plated solder lugs ensure a simple electrical connection.

The series is available with rotation angles of 3, 5 or 10 turns and offers a service life of up to over 1 million revolutions. The combination of robustness and cost-effectiveness makes the HS17 series a reliable choice for many control and measurement tasks.

Options:

• Multiturn: Available in 3, 5 or 10 turns
• Slipping clutch: Optionally integrated for increased protection
• Linearity: ±0.25 % (option: ±0.10 % for ≥ 5 kOhm at 10 turns)
• Resistance values: 100 Ohm to 100 kOhm
• Center tap: Only available for 10 turns
• Shaft adaptations: Various geometries and lengths available
• Resistance tolerance: ±3 % (option: ±1 %)
• Tandem version: For redundant signal output
• Gold-plated solder lugs for stable electrical connection
