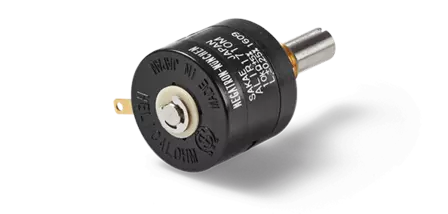

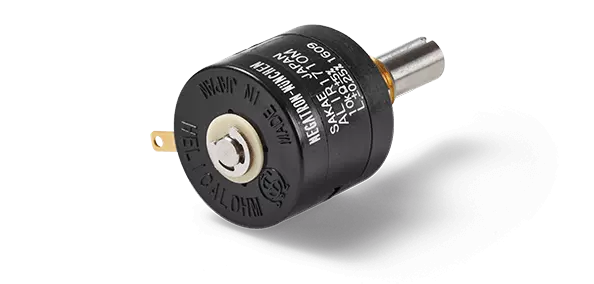

Multiturn Wirewound Potentiometer ALI17/19

Robust multiturn potentiometer for increased radial shaft loads in Ø22 mm housing

  • Precision multi-turn potentiometer
  • Robust with reinforced bearings for radial shaft loads up to 4N
  • Suitable for a wide range of applications thanks to numerous options
  • With optional integrated slipping clutch
  • Connector version simplifies mounting
Data sheet
Specifications
Sensor technology Wirewound Potentiometer
Effective electrical angle of rotation max. 3600°
Functions / Features With mech. stop
Resolution Depends on resistance value
Output signal Analogue
Electrical connection Radial, Solder contacts, Terminal connection
Protection class IP40 (optional IP65)
Mounting Bushing
Shaft diameter 6.35 mm, 6.00 mm
Housing diameter 22 mm
Housing depth min. 19 mm
Description
The ALI(R)17/19 potentiometers in 22 mm housing are suitable for ... more
Description
Close
Product description: Multiturn Wirewound Potentiometer ALI17/19

The ALI(R)17/19 potentiometers in 22 mm housing are suitable for applications where a precise multiturn potentiometer with increased radial shaft loads is required.

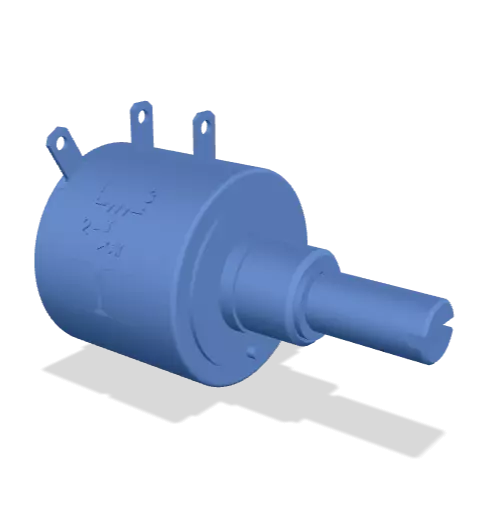

The ALI(R)17/19 potentiometers are designed to operate with a radial shaft load of up to 4N. The low wear polymer bearing in the lid provides greater stability and makes the potentiometer particularly robust. In addition, an optional integrated slipping clutch protects the potentiometer from damage caused by overrunning the end stops and facilitates zero adjustment. Two types are available, the ALI(R)19 with 6 mm shaft diameter and the ALI(R)17 with 6.35 mm shaft diameter in 3, 5 and 10-turn versions. There is a screwdriver slot at the top of the shaft for zero point adjustment. The radial gold-plated pins are suitable for flat connectors (2.8 mm to DIN 46247 part 3) and the connector version simplifies mounting.

  • Robust design for radial shaft loads up to 4N
  • With optional integrated slipping clutch
  • Connector version simplifies mounting

Options:

  • Front shaft sealing
  • Front shaft adjustment
  • Improved linearity
  • Improved resistance tolerance
  • Center tap

Many adaptations are available on request: Tandem or multi-ganged potentiometers, sealed housings, special electrical and mechanical rotation angles, and special resistance and linearity tolerances. We can also mount gears, attach cable assemblies with or without connectors, and much more. Please use our enquiry form to describe your application so that we can determine the most suitable product for your design-in.
