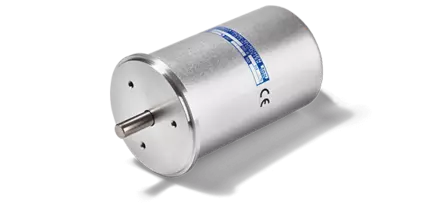

Multiturn-Wirewound Potentiometer 46HDS
Multiturn-Wirewound Potentiometer 46HDS

Multiturn-Wirewound Potentiometer 46HDS

Servo flange potentiometer with up to 20 turns and power rating up to 10 W in Ø46 mm housing

  • Robust multiturn potentiometer with up to 20 turns
  • Servo flange for precise zero-point mounting
  • Suitable for "rough" environments
  • Power rating up to 10 W
  • Optional limit switch (CW, CCW)
  • Optional rear shaft
  • Optional tandem version
  • Single-wire versions have almost infinite resolution
Data sheet
Compare
Remember
Specifications
Sensor technology Wirewound Potentiometer
Effective electrical angle of rotation Up to 7200°
Functions / Features Opt. rear shaft, With mech. stop, Opt. limit switch, Opt. multiganged/ tandem
Resolution Depends on resistance value
Output signal Analogue
Electrical connection Solder contacts, Axial
Protection class IP40
Mounting Threaded holes, Servo flange
Shaft diameter 6.00 mm
Housing diameter 46 mm
Housing depth min. 43.5 mm
Description
The 46HDS range of potentiometers are used as multi-turn servo ... more
Description
Close

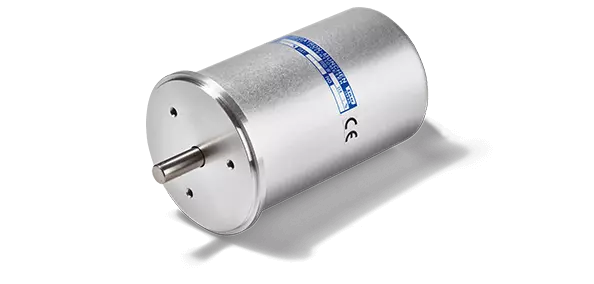

Product description: Multiturn-Wirewound Potentiometer 46HDS

The 46HDS range of potentiometers are used as multi-turn servo flange sensors with excellent linearity and resolution over a range of 3 to 20 turns.

Optional limit switches can be factory set within the electrically effective angle of rotation or within the signal plateau. Potentiometer with many options.

  • Multiturn 3…20 turns
  • Power rating up to 10 W

Options:

  • 3…20-turns
  • Limit switch (CW, CCW)
  • Back shaft
  • Tandem version
  • Resistance values from 10 Ohm to 500 kOhm
  • Improved linearity
  • Front shaft adjustments
  • Screwdriver slot
  • Shaft seal

Many adaptations are available on request:
Multi-ganged potentiometers, sealed housings, special electrical and mechanical angles of rotation, and special resistance and linearity tolerances, versions with resistive element as single wire with almost infinite resolution, 25 and 30-turn versions. We can also fit gear wheels or mount cable assemblies with or without connectors and much more. Please use our enquiry form to describe the application you will be using the product for so that we can determine the optimum product for your design-in.
