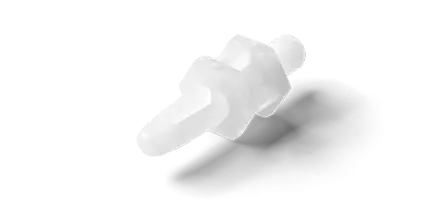

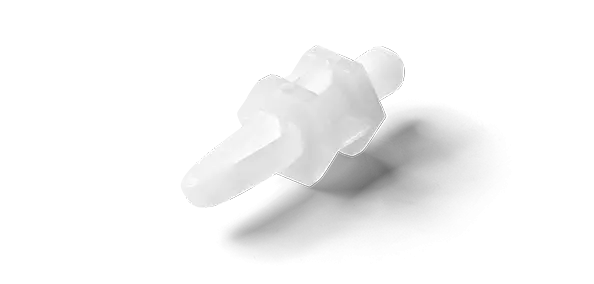

PCB spacer LPR852N

Spacer with M4 male thread on one side and snap-on mounting on the other. Easy to release by pressing the nose. For 6.4 to 35.7 mm spacing.

Product variants

18 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
401036
LPR 8520-N OHNE MUTTER
401038
LPR 8521-N OHNE MUTTER
401039
LPR 8522-N OHNE MUTTER
401040
LPR 8523-N OHNE MUTTER
401041
LPR 8524-N OHNE MUTTER
401042
LPR 8525-N OHNE MUTTER
401043
LPR 8526-N OHNE MUTTER
401044
LPR 8527-N OHNE MUTTER
402173
LPR 8520-N MIT MUTTER M4
402174
LPR 8521-N MIT MUTTER M4
402175
LPR 8522-N MIT MUTTER M4
402176
LPR 8523-N MIT MUTTER M4
402177
LPR 8524-N MIT MUTTER M4
402178
LPR 8525-N MIT MUTTER M4
402179
LPR 8526-N MIT MUTTER M4
402180
LPR 8527-N MIT MUTTER M4
406117
LPR 8525-N 25,4 OHNE MUTTER M4
406118
LPR 8525-N 25,4 MIT MUTTER M4
Distance height in mm 6,4 9,5 12,7 15,9 19,1 22,2 28,6 35,7 6,4 9,5 12,7 15,9 19,1 22,2 28,6 35,7 25,4 25,4
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread
Ø Male thread in mm M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4
Outer Diameter body in mm 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0
Colour natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural
Ø Mounting hole (A "top") in mm 4,00 4,00 4,00 4,00 4,00 4,00 4,00 4,00 4,00 4,00 4,00 4,00 4,00 4,00 4,00 4,00 4,0 4,00
Overlap (A "top") in mm 10,2 10,2 10,2 10,2 10,2 10,2 10,2 10,2 10,2 10,2 10,2 10,2 10,2 10,2 10,2 10,2 10,2 10,2
Panel thickness (A "top") in mm 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57
