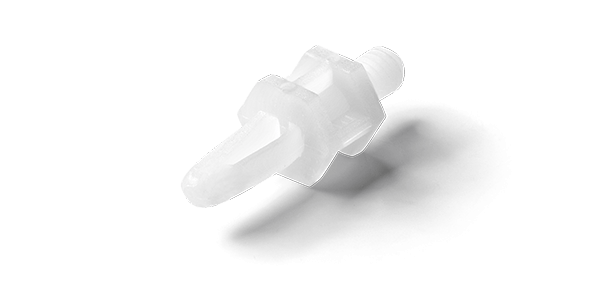

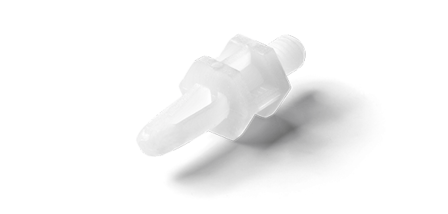

PCB spacer LPR852N
Spacer with M4 male thread on one side and snap-on mounting on the other. Easy to release by pressing the nose. For 6.4 to 35.7 mm spacing.
| 401036 LPR 8520-N OHNE MUTTER | 401038 LPR 8521-N OHNE MUTTER | 401039 LPR 8522-N OHNE MUTTER | 401040 LPR 8523-N OHNE MUTTER | 401041 LPR 8524-N OHNE MUTTER | 401042 LPR 8525-N OHNE MUTTER | 401043 LPR 8526-N OHNE MUTTER | 401044 LPR 8527-N OHNE MUTTER | 402173 LPR 8520-N MIT MUTTER M4 | 402174 LPR 8521-N MIT MUTTER M4 | 402175 LPR 8522-N MIT MUTTER M4 | 402176 LPR 8523-N MIT MUTTER M4 | 402177 LPR 8524-N MIT MUTTER M4 | 402178 LPR 8525-N MIT MUTTER M4 | 402179 LPR 8526-N MIT MUTTER M4 | 402180 LPR 8527-N MIT MUTTER M4 | 406117 LPR 8525-N 25,4 OHNE MUTTER | 406118 LPR 8525-N 25,4 MIT MUTTER M4 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Distance height in mm | 6,4 | 9,5 | 12,7 | 15,9 | 19,1 | 22,2 | 28,6 | 35,7 | 6,4 | 9,5 | 12,7 | 15,9 | 19,1 | 22,2 | 28,6 | 35,7 | 25,4 | 25,4 |
| Mounting (A "top") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Mounting (B "bottom") | Male thread | Male thread | Male thread | Male thread | Male thread | Male thread | Male thread | Male thread | Male thread | Male thread | Male thread | Male thread | Male thread | Male thread | Male thread | Male thread | Male thread | Male thread |
| Ø Male thread in mm | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 |
| Outer Diameter body in mm | 7,9 | 7,9 | 7,9 | 7,9 | 7,9 | 7,9 | 7,9 | 7,9 | 7,9 | 7,9 | 7,9 | 7,9 | 7,9 | 7,9 | 7,9 | 7,9 | 7,9 | 7,9 |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 |
| Colour | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural |
| Ø Mounting hole (A "top") in mm | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 | 4,0 | 4,00 |
| Overlap (A "top") in mm | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 |
| Panel thickness (A "top") in mm | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 |
