Spacer LPR83N

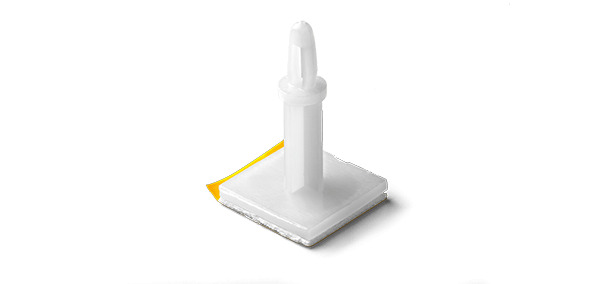

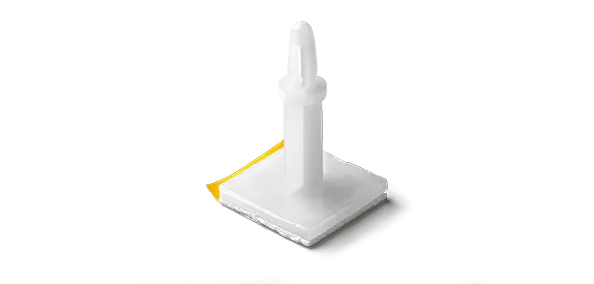

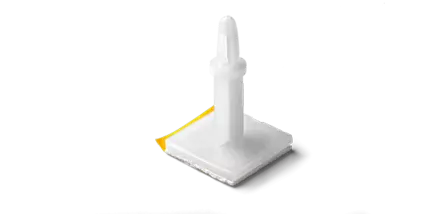

PCB spacer LPR83N

Spacer with snap-on mounting on one side and adhesive film on the other. For distance length 4.8 to 28.6 mm.

Description
Close
Product description: PCB spacer LPR83N

Product variants

9 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
401017
LPR 8301-N
401018
LPR 8302-N
401019
LPR 8303-N
401020
LPR 8304-N
401021
LPR 8305-N
401022
LPR 8306-N
401023
LPR 8307-N
401024
LPR 8308-N
401025
LPR 8309-N
Distance height in mm 4,8 6,25 9,5 12,6 15,9 19,1 22,2 25,4 28,6
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Adhesive film Adhesive film Adhesive film Adhesive film Adhesive film Adhesive film Adhesive film Adhesive film Adhesive film
Outer Diameter body in mm 7,1 7,1 7,1 7,1 7,1 7,1 7,1 7,1 7,1
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Temperature range -30°C - +60°C -30°C - +60°C -30°C - +60°C -30°C - +60°C -30°C - +60°C -30°C - +60°C -30°C - +60°C -30°C - +60°C -30°C - +60°C
Colour natural natural natural natural natural natural natural natural natural
Ø Mounting hole (A "top") in mm 4,00 4,00 4,00 4,00 4,00 4,00 4,00 4,00 4,00
Overlap (A "top") in mm 10,2 10,2 10,2 10,3 10,2 10,2 10,2 10,2 10,2
Panel thickness (A "top") in mm 1,57 1,2 - 1,7 1,2 - 1,7 1,2 - 1,7 1,57 1,57 1,57 1,57 1,57
