Drawing spacer LPR800M

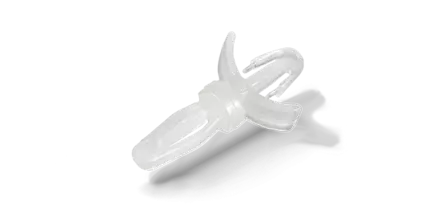

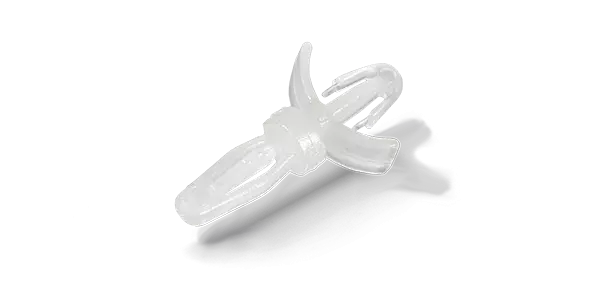

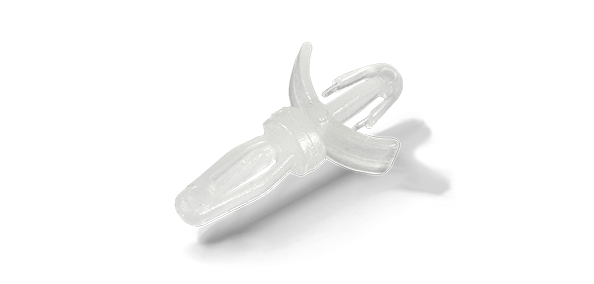

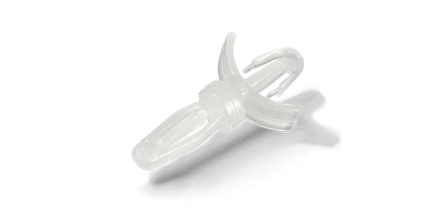

Spacer LPR800M

PCB spacer LPR800M

Spacer with snap-on mounting on both sides for distance length 3.2 to 15.9 mm. Easily releasable by pushing back the nose.

Description
Close
Product description: PCB spacer LPR800M

Product variants

7 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
402361
LPR 8000-MINI
402362
LPR 8001-MINI
402363
LPR 8002-MINI
402364
LPR 8003-MINI
402365
LPR 8004-MINI
402366
LPR 8005-MINI
405598
LPR 8006-MINI
Distance height in mm 3,2 4,8 6,4 9,5 12,7 15,9 14,3
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Outer Diameter body in mm 4,4 4,4 4,4 4,4 4,4 4,4 4,4
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Temperature range -40°C - 85°C -40°C - 85°C -40°C - 85°C -40°C - 85°C -40°C - 85°C -40°C - 85°C -
Colour natural natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 3,18 3,18 3,18 3,18 3,18 3,18 3,18
Overlap (B "bottom") in mm 4,0 4,0 4,0 4,0 4,0 4,0 4,0
Ø Mounting hole (A "top") in mm 3,18 3,18 3,18 3,18 3,18 3,18 3,18
Overlap (A "top") in mm 8,7 8,7 8,7 8,7 8,7 8,7 8,7
Panel thickness (A "top") in mm 1,57 - 1,57 1,57 1,57 1,57 1,57
Panel thickness (B "bottom") in mm 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98
