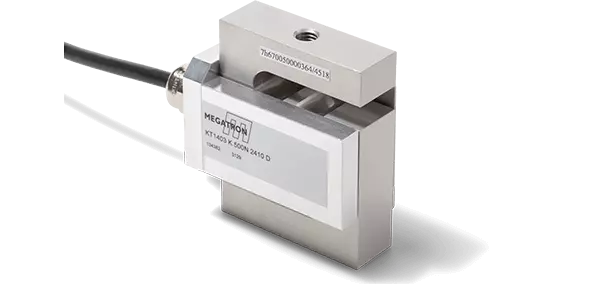

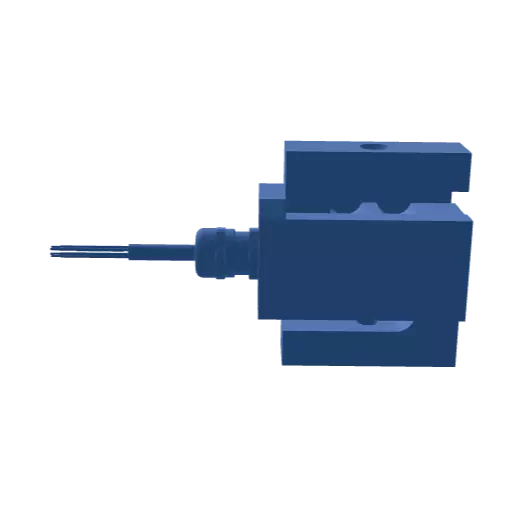

S-Beam force sensor KT1403

S-Beam force sensor with integrated digital amplifier and M8 female thread for measuring ranges up to 1 kN

  • S-Beam with integrated digital transducer
  • Strain gauge principle
  • Aluminium body
  • Output 0…10 V, 4…20 mA @24 VSUP
  • Force transmission via M8-thread for 50 N…1 kN
  • Easy to install, stable and reliable
DMS Wheatstone bridge circuitVDCmA
Data sheet
Specifications
Design S-Beam
Nominal Load 50 N, 100 N, 200 N, 500 N, 1 kN
Direction of Force Tension and Compression
Output Signal 4..20 mA with integrated amplifier, 0..10 V with integrated amplifier
Amplifier With Amplifier
Protection Class IP30
Description
In the KT1403 series force transducers, the force is applied via ... more
Description
Close
Product description: S-Beam force sensor KT1403

In the KT1403 series force transducers, the force is applied via the M8 female thread for measuring ranges up to 1 kN. The transducers are based on the S-Beam principle. The force is applied via the internal thread for compressive or tensile forces. The aluminium measuring body is available from the measuring range of 50 N…1 kN in an independent design. The load cell has an integrated digital signal converter and provides output signals of 0...10 V, 4...20 mA @ 24 VSUP. The Wheatstone strain gauge full bridge measuring principle has been tried and tested for decades in this type of force sensor and ensures a long service life.
