Optical kit encoder SPFH

Very flat optical incremental kit encoder with Ø16 mm housing and an optical resolution from 250 to 4096 pulses / 360°

  • Optical resolution 250 to 4096 pulses / 360°
  • 16 mm housing
  • Housing depth 8.9 mm / shaft diameter 1.5 or 2 mm
  • Operating voltage 5 VDC
  • Output TTL
  • 5-pole connector
incremental
Data sheet
Compare
Remember
Specifications
Sensor technology Optical Encoder
Effective electrical angle of rotation max. 360°
Functions / Features Without mech. stop, Hollow shaft, Kit-Encoder
Resolution 250..4096 ppr.
Output signal Incremental
Electrical connection Radial, Connector
Protection class IP40
Mounting Hub
Shaft diameter 1.50 mm, 2.00 mm
Housing diameter 16 mm
Housing depth 8.92 mm
Description
The SPFH 16 mm kit encoder is designed to provide incremental ... more
Description
Close
Product description: Optical kit encoder SPFH

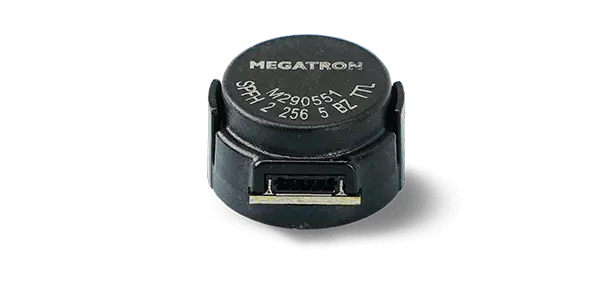

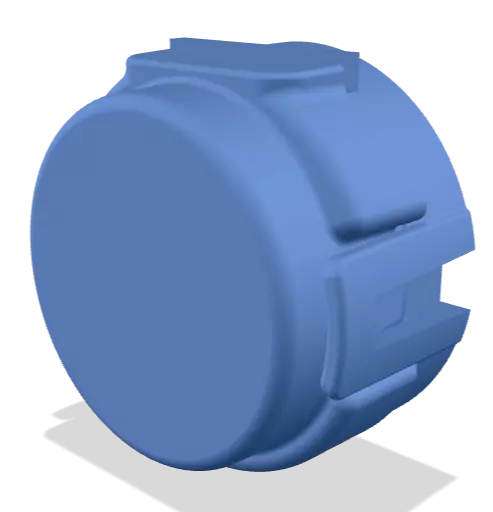

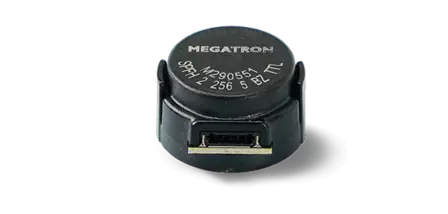

The SPFH 16 mm kit encoder is designed to provide incremental signals in a very small space. The SPFH uses an innovative clip-on encoder disc that can accommodate shaft diameters of 1.5 mm or 2 mm. The SPFH is designed as a micro-optical encoder for one-time mounting. The base has mounting holes for two M1.6-0.35 screws, length 3 mm on a 10 mm pitch circle. The encoder cover is simply snapped onto the base. Connection is via a 5-pin connector with reverse polarity protection.
